Single Screw Waste Plastic Recycling Pelletizing Machine PP PE PS PC Flakes
PP PE PS PC Flakes or block material Plastic recycling extruder with 400~500kg/h
Machine Model:
|
Model
|
Screw Diameter D(mm)
|
L/D
|
Motor Power P(kw)
|
(Screen Changer)
|
Output Q(kg/h)
|
|
SJ-100
|
100
|
20-32
|
30-70
|
Hydraulic
|
120-200
|
|
SJ-120
|
120
|
20-32
|
37-45
|
Hydraulic
|
200-300
|
|
SJ-150
|
150
|
20-32
|
55-75
|
Hydraulic
|
250-350
|
|
SJ-180
|
180
|
20-32
|
75-90
|
Hydraulic
|
300-450
|
|
SJ-200
|
200
|
20-32
|
110-160
|
Hydraulic
|
500-800
|
Features of Single Screw Extruder
1.Two die head :manual whirling and hydraulic pressure screen changer.
2.The meter imported from Japan
3.High precise gear bos, high carrying capacity and steadying driving
The single screw extruder fit for clean PP PE PS PC Flakes, not for compounding masterbatch make.the final end product could be used to make plastic carrying bags or new film.
The Charactor of Single Screw Plastic recycled machine
1. Precision gear box, high carrying capacity, smooth transmission, low noise;
2. Newly designed barrel and screw ensure better melt uniformity, low melt temperature and much higher production;
3. Adopt nitrided steel for most applications to ensure high corrosion-resistant effect. Special materials can be adopted by bimetallic steel;
4. The cyclinder is cooled by super mute blowing fan;
5. Japanese PID temperature controller keeps the control steady and accurate;
6. The die head has two types: manual revolving and hydraulic pressure screen changer. Changing screen is easy and time-saving.

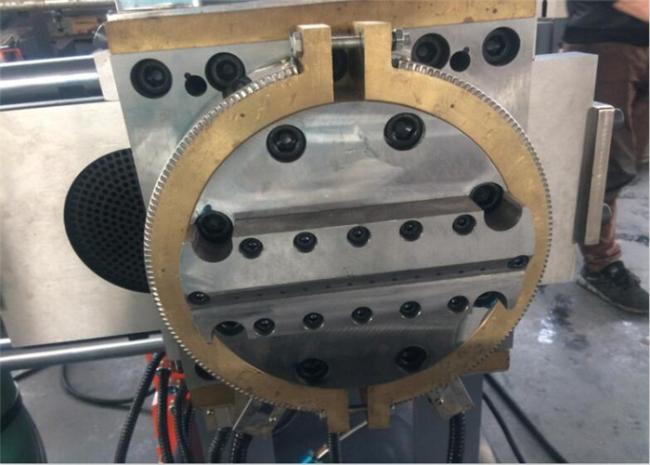

The die head of single screw recycled machine

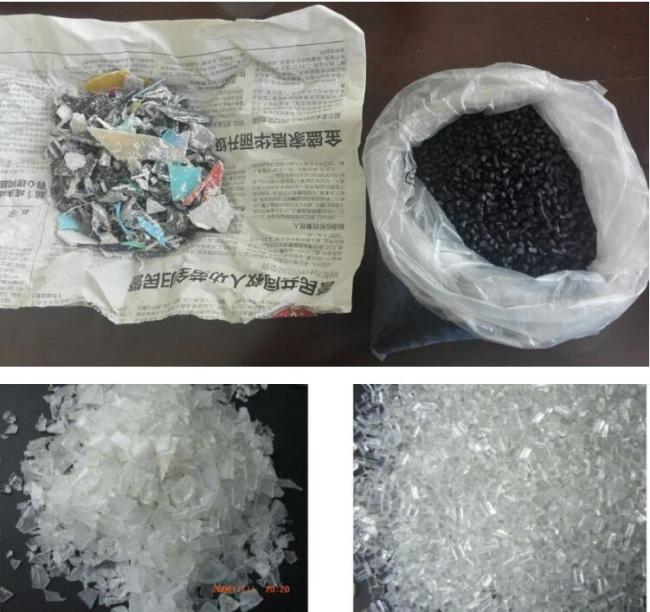

Final Products
