Factory Direct Filler Masterbatch Machine Plastic Extruder Production Line
Price:
negotiation
MOQ:
1
Delivery Time:
45 days after payment of deposit
Brand:
GS-mach
Product Description
Factory Direct Filler Masterbatch Machine Plastic Extruder Production Line
General description:
1. Long groove between feed throat and screw to improve output highly
2. Accurate temperature control system onfeed section to match different plastics
3. Unique screw design to achieve higher plasticizing and products quality
4. Gearbox of high torsion balance to realize stable runing
5. Hshape frame to decrease vibrating
6. PLC(Simatic Multi Panel) operation panel to ensure synchronization
7. Energy conservation easy to maintenance.
Machine Model:
| Model | Series | Diameter | L/D | R/min | Capacity (kg/h) |
| GS-20 | A | 21.7 | 32-60 | 400 | 2-10 |
| B | 600 | 5-15 | |||
| GS-35 | A | 35.6 | 32-60 | 400 | 10-40 |
| B | 600 | 15-55 | |||
| C | 600 | 40-95 | |||
| D | 600 | 70-120 | |||
| GS-50 | A | 50.5 | 32-60 | 500 | 120-200 |
| B | 600 | 155-255 | |||
| C | 600 | 200-355 | |||
| D | 600 | 255-400 | |||
| GS-65 | A | 62.4 | 32-60 | 500 | 200-355 |
| B | 600 | 255-400 | |||
| C | 600 | 300-550 | |||
| D | 600 | 500-850 | |||
| GS-75 | A | 71 | 32-60 | 500 | 300-550 |
| B | 600 | 450-750 | |||
| C | 600 | 500-850 | |||
| D | 600 | 750-1250 | |||
| GS-95 | A | 93 | 32-60 | 500 | 750-1250 |
| B | 600 | 950-1600 | |||
| C | 600 | 1350-2250 | |||
| D | 600 | 1650-2750 | |||
| GS-135 | A | 133 | 32-60 | 400 | 1650-2750 |
| B | 500 | 2250-3750 | |||
| C | 500 | 3000-5000 | |||
| D | 500 | 4500-7500 |
Machine Parameter
| 1 | Material | Filler Masterbatch |
| 2 | Diameter | 21.7-133 mm |
| 3 | Power | Max 550Kw |
| 4 | Max capacity | 2750KG/H |
| 5 | N.m range | 4.2-8.7 |
| 6 | Speed | 400-600 r/min |
| 7 | Management system | CE, ISO9001 |
| 8 | L*W*H | 13*2.4*2.3 m |

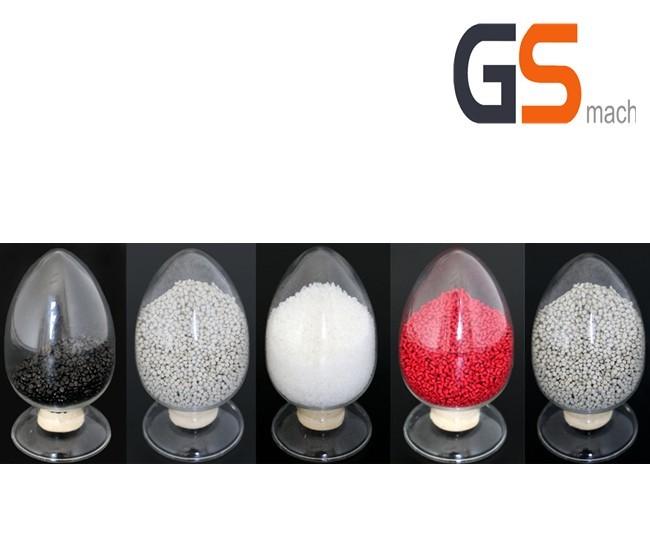

Machine Picture:
