Automatic Controlling System Plastic Pellet Extruder For PP NBR Modification
PP+NBR modification plastic pellet extruder with 300~400kg/h of water cooling cutting system
Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top quality flame retardant pellets for PP+NBR
is designed by using the “toy bricks”principle, which can make the plastic extrusion machine changed according to the materials properties and process technology easily. It is possible for one machine reach the extensive performance and special purpose in many place.
Machine Model
| Model | Diameter (mm) | L/D | Screw rotary speed (r/min) | Motor power(kw) | Torque(N.M) | Capacity(kg/h) |
| GS-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
| GS-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
| GS-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
| GS-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| GS-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
------Packing type: Wooden base plate,damp proof plastic lining,fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 40% by T/T in advance,delivery against payment of 60% balance after qualified acceptance
------Leave factory testing: before leaving factory,equipment should be tested by both parties.Test material offered by buyer
------Installation: we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement;the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day,estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after leaving factory,damaged
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
------other interface equipment not listed above
------trial use of the raw material and product testing, inspection

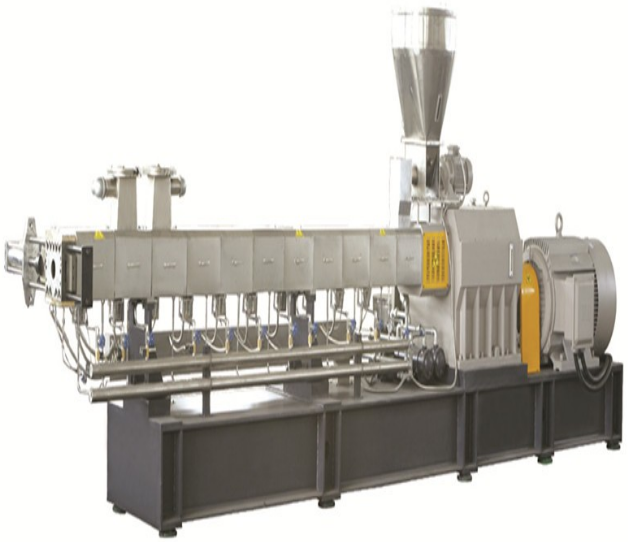

Machine Picture:
