Heating Cooling Mixers Mixer Extruder Machine Parts For Plastic Industry
High speed Mixer Extruder Machine Parts with 500L of 400~500kg/h
High Speed Mixer Information:
It is widely applied to mixing, stirring, drying and coloring of various materials in industries of plastic, rubber, pharmacy, fuel, food, daily chemicals, etc. GS series mixers adopt advanced design, so it convenient and safe for operation. It offers small size, light weight, high efficiency, low energy consumption, and low noise.
Heating Cooling Mixers are highly acclaimed in the plastic industry.The mixer are used in the processing of dry blend in area of rigid and plasticized pvc ,thermoplastics abs pe pp for drying blend and wet coating ,dyes and colors and other allied industrial .It is a combination of high speed mixer and cooling mixer.the material in high speed mixer during mixing operation gets heated by utilization of frictional heat and then transferred to the cooling mixer in order to keep in free flowing conditions.
|
Specification For Heating Cooling Mixer
|
|||
|
Mixer model
|
Output(kg/h)
|
Total power(kw)
|
|
|
GS-Z 100/200
|
175
|
14/22/7.5
|
|
|
GS-Z 200/500
|
350
|
30/42/11
|
|
|
GS-Z 300/600
|
500
|
40/55/11
|
|
|
GS-Z 500/1250
|
850
|
55/75/15
|
|
Main specifications:
| Type | Total Volume(L) | Effetive Volume(L) |
Power of electrical Machinery and heating(KW) |
Principal axis rotary speed | Figure dimension(MM) | Heating mode | Discharge mode |
| GS-5A | 5 | 3 | 1.1 | 1400 | 620×300×730 | Self friction | Hand work |
| GS-10A | 10 | 7 | 3 | 2000 | 1200×300×830 | ||
| GS-25A | 25 | 20 | 5.5 | 1440 | 1200×350×850 | ||
| GS-50A | 50 | 35 | 7/11/3 | 750/1500 | 2100×700×1100 |
Electric steam |
Pneumatic |
| GS-100A | 100 | 75 | 14/22/6 | 650/1300 | 2100×800×1510 | ||
| GS-200A | 200 | 150 | 30/42/9 | 475/950 | 2400×850×1580 | ||
| GS-300A | 300 | 225 | 40/67/12 | 475/950 | 2800×1080×1680 | ||
| GS-500A | 500 | 375 | 47/67/12 | 430/860 | 3060×1150×1880 | ||
| GS-800A | 800 | 600 | 83/110/15 | 370/740 | 3385×1380×2750 | ||
| GS-1000A | 1000 | 750 | 110/160/28 | 325/650 | 3460×1140×2900 | Self friction | Pneumatic |
| GS-200C | 200 | 150 | 30/42 | 650/1300 | 2545×900×1700 | ||
| GS-300C | 300 | 225 | 47/67 | 475/950 | 2800×1080×1680 | ||
| GS-500C | 500 | 575 | 83/110 | 500/1000 | 3060×1150×1880 |

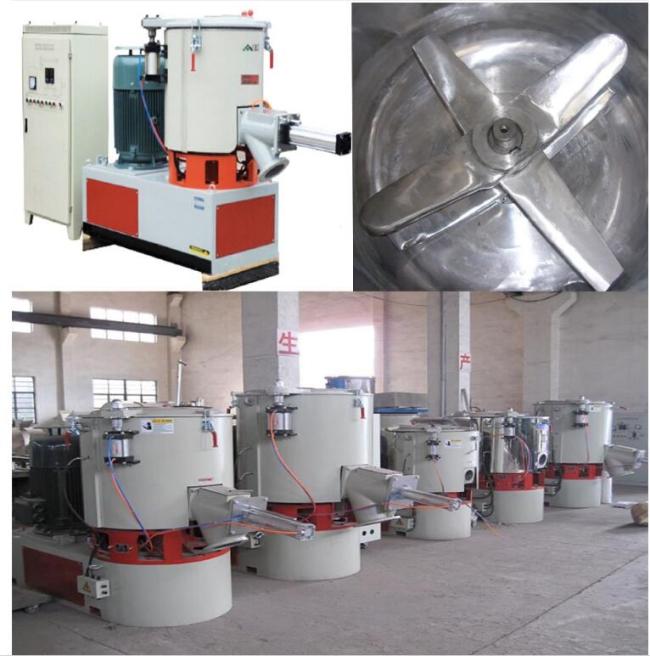

Machine Picture:
