AS/PA/PC Carbon Fiber Plastic Pellet Extruder High Efficiency Heat Transfer
AS/PA/PC Carbon Fiber Plastic Pellet Extruder High Efficiency Heat Transfer
Machine Information:
- Innovated design of heater tightened style insures high efficiency of heat transfer.
- New-style gear transmission system:
- 1. New-style project of parallel three-axises driving makes the convey axis.
- 2. The key bearings are imported from WorldTop brand.
- 3. The compact design to optimize gear parameters and strengthen safe overmeasure.
- 4. Technics,strengthening of tooth face, ensure high torque,high precision and low noise
- 5. Spraying lubriation in drive comp dainty.
Machine Introduction:
The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.
Machine Model:
| Model | Diameter(mm) | L/D |
RPM (r/min) |
Power (Kw) |
Torque(N.m) | T/N | Capacity (Kg/h) |
| GS-20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| GS-36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| GS-51A | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| GS-51B | 51 | 32-52 | 600 | 55 | 415 | 5.2 | 150-25 |
| GS-63A | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
| GS-63B | 63 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 800 | 110 | 620 | 4.4 | 300-500 | |||
| GS-75A | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| GS-75B | 72 | 32-64 | 600 | 132 | 990 | 4.6 | 400-650 |
| 800 | 160 | 900 | 4.2 | 480-800 | |||
| GS-92A | 92 | 32-64 | 400 | 250 | 2815 | 5.9 | 650-1050 |
| 500 | 2250 | 4.7 | 750-1250 | ||||
| GS-92B | 92 | 32-64 | 600 | 280 | 2365 | 5.0 | 900-1500 |
| 800 | 2250 | 4.7 | 1200-2000 | ||||
| GS-135A | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| GS-135B | 135 | 32-48 | 500 | 400 | 6750 | 5.1 | 200-3500 |
Application for AS/PA/PC Carbon Fiber Plastic Pellet Extruder High Efficiency Heat Transfer
1. PP/PE/ABS+Caco3/Sio2 (silicon dioxide)/talc (chalk)/carbon blac;
2. Degradable masterbatch:
PE/PS+starch/ poly lactic acid (PLA)/soy Starch;
3. Anti-flame (flame retardant) masterbatch:
PP/ABS/PS/EVA/PA+Mg(OH)2 (magnesium hydroxide)/Al(OH)3 (aluminum hydroxide);
4. Cable material:
PVC cable, PVC transparent bottle material;
5. Wood plastic:
PP/PE/PVC+wood powder (wood flour)/bamboo powder(bamboo flour)/fiber (filament, staple)

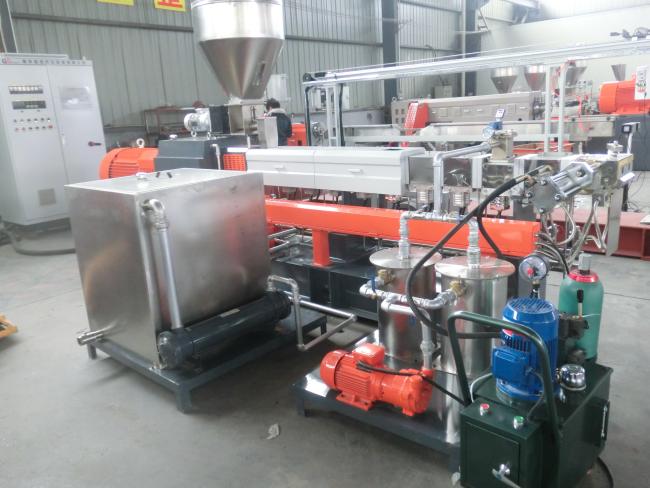

Machine Picture:
