Glass Fiber Reingorced Twin Screw Compounding Extruder With 200-300kg/H

PP+ABS mixing plastic granulator of double screw extruder with 200~300kg/h

This is a parallel co-rotation twin-screw extruder

Because of its numerous advantages

>>This structure can afford a high speed to guarantee highly efficiency

>>Easy maintenance

>>Its self-cleaning can improve products quality and easy to clean.

>>building blocks barrel and screw can afford your variety requirements

All of our products are with high quality because we can’t bear even a tiny dissatisfied detail

>Screw and barrel : Screw: W6Mo5Cr4V2 high speed tool steel

barrel: 45# steel barrel body, inside line is made of bi-metal alloy.

shaft: 40CrNiMo

building blocks barrel and screw can adjust different materials

By means of the replaceable screw barrel sections, the processing sections is devoted into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eight-shaped barrel bore, is achieved by a reverse force-flow temperature control circuit. Connections of pipes for temperature control are in groove-tongue design to balance alternating thermal stress and avoid leakage.

The screw barrels are made of nitrided steel. In order to increase the service life of the screw barrels, these are provided with wear resistant inserts.

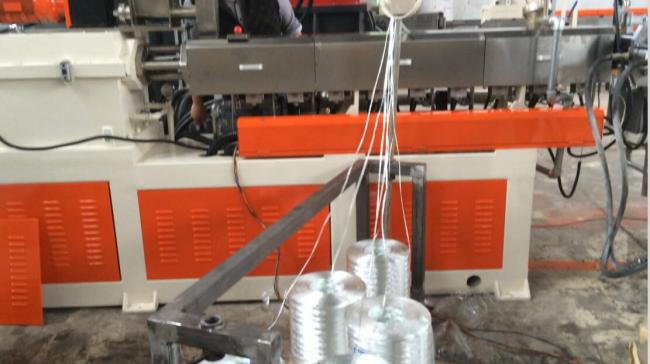

Machine Picture:
