PP PE PVC Rubber EVA Two Stage Extruder Plastic Granulator Machine PLC Control
Two Stage Compounding Extrusion PP PE PVC Rubber EVA Masterbatch Extruder Pellets Plastic Granulator Machine
Features:
The first stage is Co-rotating twin-screw compounder. Use the twin-screw advantage of high-speed,
high shear, strong compounding to realize material full plasticization and compounding, because no drivehead back pressure, so we can according to different materials flexibly arrange screw array to achieve the best compounding condition.
The second stage is single screw extruder.The screw low-speed and deep groove feature provides a low-cut processing environment , while mating barrel cooling, to prevent the plasticized material from generating thermal decomposition in high-pressure extrusion.
Application:
PVC cable material, sole material, transparent bottle material, medical material, low smoke zero
halogen or halogen free flame retardant cable material, EVA shielding material, PE/EVA carbon black
mother material and all kinds of crosslinking cable materials so on, radiation crosslinking cable materials.
Twin/single Screw Extruder Specification:
| Model |
Screw Dia D (mm) |
L/D Ratio |
Screw speed N (r/min) |
Motor power P (KW) |
output Q (kg/h) |
|
| GSSJ50/100 | SHJ50 | 50.5 | 24~48 | 500 | 37 / 45 | 100~350 |
| SJ100 | 100 | 7~20 | 85 | 30 / 37 | ||
| GSSJ65/150 | SHJ65 | 62.4 | 24~48 | 500 | 55 / 75 | 200~500 |
| SJ150 | 150 | 7~20 | 85 | 37 / 45 | ||
| GSSJ75/180 | SHJ75 | 71 | 24~48 | 500 | 90 / 110 | 400~800 |
| SJ180 | 180 | 7~20 | 85 | 45 / 55 | ||
| GSSJ95/200 | SHJ95 | 93 | 24~48 | 400 | 200 / 250 | 700~1500 |
| SJ200 | 200 | 7~20 | 85 | 55 / 75 | ||

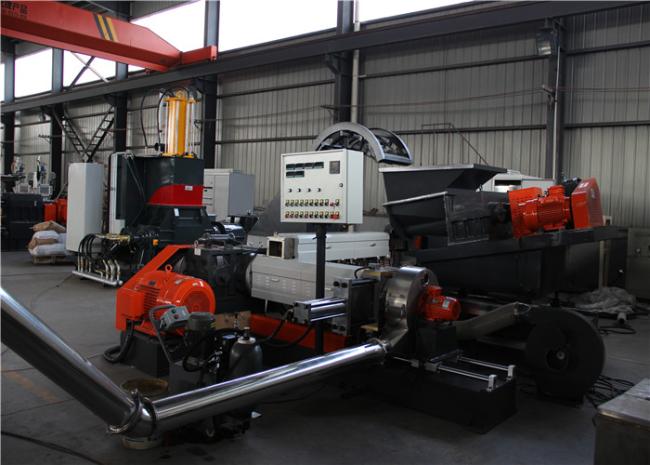

Machine Picture:
