Caco3 Filler Masterbatch Machine Double Screw Extruder Machine

Caco3 Filler Masterbatch Double Screw Extruder Machine Plastic Granulate Machine

 Filler Masterbatch Extruder Composition

3.Electrical Control System

4.Pelleting System

Main Features of twin screw extruder:

----- Main motor:

----- Y2 type level 4 AC motor

----- Power:110kw

----- Adjust Speed Method: adopting”Delta” AC frequency inventor

----- Gear box:

----- Shell: Nodular cast iron,shock absorption,Prevent noise optimization combination

----- Input rotating speed:1480rpm

----- Output speed: 600rpm

----- Needle bearing are Japan "IKO" brand, all the radial axletree in torque allocation system are imported “NSK” brand.

----- reducer system together with torque allocation system, high torque, hard gear face material 20CrNi2MOA,hardness HRC58-62;the precision manufacture according to ISO1328-1995.Gear all adopt the carburizing and quenching hard tooth surface.Using special gear grinding software to carrying out the tooth profile,guarantee gear strength, tooth load even, high strength, low noise, low vibration.

----- Transmission box lubrication system

A. Gear and bearing adopt oil lubrication

B.Gear meshing and bearing point is equipped with shunt oil spray strong lubrication way

C.Lubrication cooling using external cooler, the specification 1.3m3

D.Oil pump type:BB-B10,motor power: 0.55kw

Model of filler masterbatch machine:

Water Supply

-----Recycling water: water pressure:～0.45MPa

-----Water temperature:≤38℃

-----Industrial soft water(none-ion water )water temperature ≤38℃

-----Circulating water: for barrels cooling; using soft water(distilled water) to prevent scale

-----External circulating water: for cooling internal circulating water and water trough

-----Water supply suggestion: build pool 25~30m3outside of workshop and pump the water

The popular model often chosen by our customers::

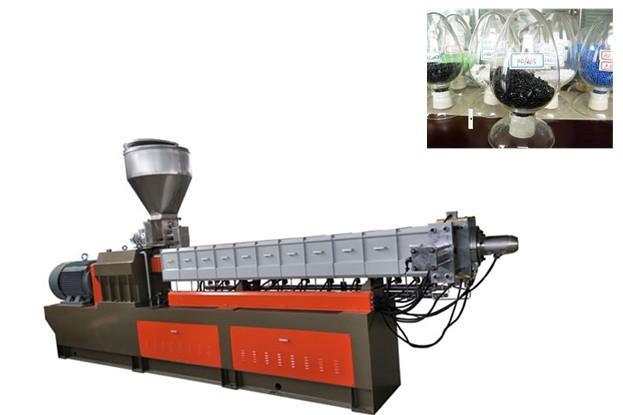

Machine Picture:
