800-1000kg/H Rubber Extruder Machine With Mold Temperature Controller
Rubber compounding and extrusion granule machine and production line with rubber extruder machine of 800~1000kg/h
Introduction:
Making rubber granule generally apply in adding accelerators or sulphur, plastic-rubber mixing and so on. Kecheng's deisgn generally equip kneader and single screw extruder, separant agents absorb and recovery system, mould temperature controller and water chiller, pelletizing and other auxiliary machines.
MOST SUITABLE:E.V.A. Rubber,TPR,Sole,Rubber Roller,Hoses,Belts,Sponges,Vibration
Insulator,Elastic Cord,Sealing Material,Tire,Tapes Master Batches,Pigment,Ink,Electric Rubber Parts,Chemical Industry Compounds.
MAIN FEATURES
1. The machine equips automatic temperature and time control system and operate precision simple
mixing can attain the best dispersion and uniformity.
2. Hybrid slot for can dumping type mix blend stalk a leakpro of hoption stem a stype machine oil seal make to clean and changer colors in brief easy.
3. In 6~10 minutes/batch of output equivalent to 2 untis of open mixing mill.
4. Pressurized and sealed mixing chamber to probide high mixing performance and prevent
environmental pollution.
5. Easy installation,operation and maintenance,lower the running cost
Specifications for Dispersion Kneader
| Model | GS-10 |
| Mixing capacity(L) | 10L |
| Main power(KW) | 15kw |
| Brake Motor power (KW) | 0.75kw |
| Tilting angle | 110° |
| Air compressor | 2.2kw |
| Cooling water(mixing rubber) | 0.2-0.4Mpa |
| Heating Steam pressure(mixing plastics) | 0.5-0.8Mpa |
| Electric Heater (mixing plastics) | 6kw |
| Dust collector | HLL-10 |
| Overall Dimensions (L*W*H) | 2200*1350*2150mm |
| Machine weight | 2300kg |

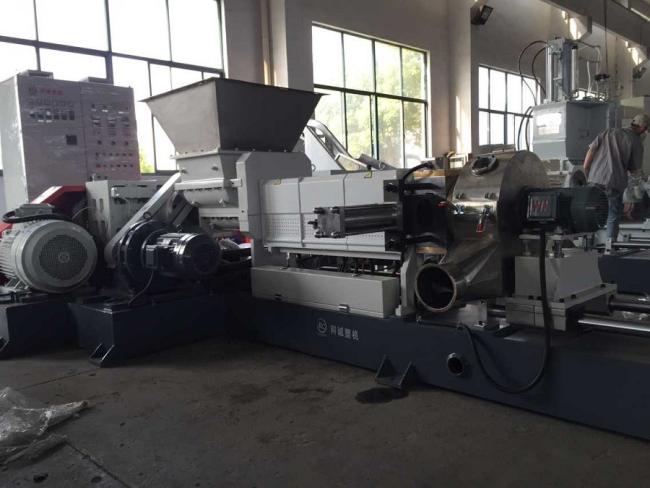

Machine Picture:
