Plastic 3d Printer Filament Extrusion Line With Single-Screw 380V
Single Screw plastic 3D printer filament extruder production line filament machine
General Introduction
Safety operation rules: When the grinding wheel is opened, no one should stand in front of the wheel so as not to have an accident. When the machine is repaired or checked, the power supply of the machine tool must be cut off. The feed of the drawing cutter of the grinding wheel or the drawing machine should be fed smoothly and slowly to ensure safety. Bed, straightening machine guideway, etc. should be refueling.
Specifications
| Model | Power | Diameter | Capacity | Tolerance | Material |
| Lab machine | 200 W | 1.75-3 mm | 1-2 kg/h | +/- 0.05mm | PLA ABS HIPS PA PET |
| GSD-35 | 4 KW | 1.75-3 mm | 8-15 kg/h | +/- 0.03mm | PLA ABS HIPS PA PET |
| GSD-45 | 7.5 KW | 1.75-3 mm | 15-30 kg/h | +/- 0.03mm | PLA ABS HIPS PA PET |
| GSD-65 | 15 KW | 1.75-3 mm | 30-50 kg/h | +/- 0.03mm | PLA ABS HIPS PA PET |

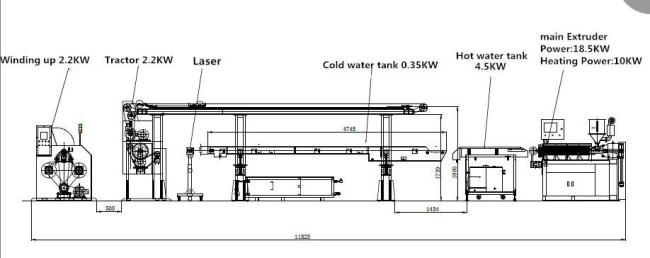

Layout Drawing
Spare Parts &Tools
1. Toolbox
2. internal hexagonal wrench
3. The die head special wrenchpecial wrench
4. Round nut wrench,7 inch adjustable wrench
5. Shears,nipper pliers
6. screwdriver
7. Heating plate
8. Operating Manual
