Kneader Mixer Single Screw Extruder , Plastic Granulator Machine
Kneader Mixer Single Screw Extruder granlator machine plastic extruder pellet system
Models
| Model | Kneader | Kneader Motor Power | L/D | Diameter | Motor Power |
| GSD-100 | 35L | 55KW | 12-22;1 | 100MM | 37-55KW |
| GSD-120 | 55L-75L | 75-110KW | 12-22;1 | 120MM | 55-75KW |
| GSD-150 | 110L | 160KW | 12-22;1 | 150MM | 75-110KW |
| GSD-180 | 150L | 220KW | 12-22;1 | 180MM | 90-132KW |
Kneader models
| model | 3 L | 10 L | 20 L | 35 L | 55 L | 75 L | 110 L |
| capacity | 3 L | 10 L | 20 L | 35 L | 55 L | 75 L | 110 L |
| kg/batch | 1.5-5 | 8-15 | 15-25 | 26-45 | 45-75 | 60-85 | 100-140 |
| batch/h | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 |
| pressure(MPA) | 0.2-0.4 | 0.4-0.6 | 0.4-0.6 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Motor power(kw) | 5.5 | 15 | 30 | 55 | 75 | 110 | 160 |
| tilting motor(kw) | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 3.75 | 5.5 |
| Air cylinder(mm) | 120 | 160 | 200 | 250 | 300 | 350 | 420 |
| Speed:RPM | 39/30 | 39/30 | 39/30 | 39/30 | 39/30 | 39/30 | 39/30 |
| Weight(kg) | 1000 | 2300 | 4000 | 6500 | 8500 | 10000 | 14000 |
Machine Composition
1. Kneader
2. Conveyor
3. Twin Screw Force Feeder
4. Single Screw Extruder
5. Electrical Control System
6. pelleting system
Contact
Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.1 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com
Pelleting System

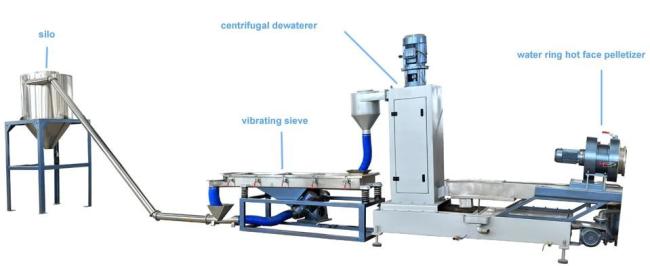

1. water ring pelleting system

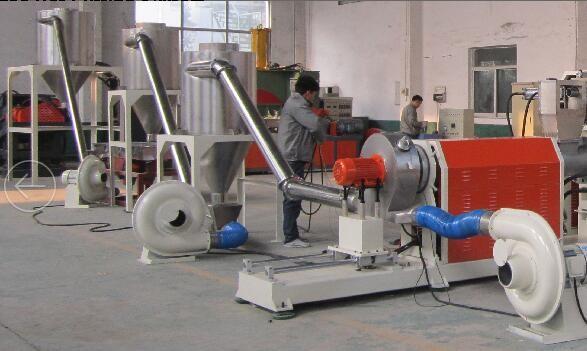

2. Die Face Hot Cutting System

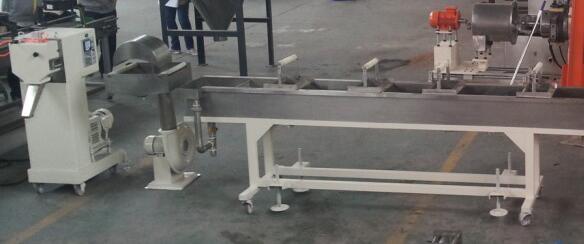

3. water strand pelleting system
4. Underwater pelleting system
