Plastic ABS PLA 1.75mm 3mm 3D Printer Filament Extruder Single Screw
15 - 30 kg / h 3D Printer Filament Extruder Making Machine ABS PLA 1.75 mm 3.0 mm
General Introduction
Plastic filament extruder machine can be divided into two parts: one is the power part and the other is the heating part. Power part: usually use frequency converter, energy saving way is by saving the motor's residual energy. For example, the actual power of the motor is 50Hz, you actually need only 30Hz to produce in production. The excess energy is wasted. The frequency converter is to change the power output of the motor to achieve the effect of energy saving.
Specification
| model | power | diameter | capacity | tolerance | material |
| GSD-35 | 4 KW | 1.75 - 3 mm | 15-30 kg/h | +/- 0.03 mm | PLA ABS HIPS PA PET |

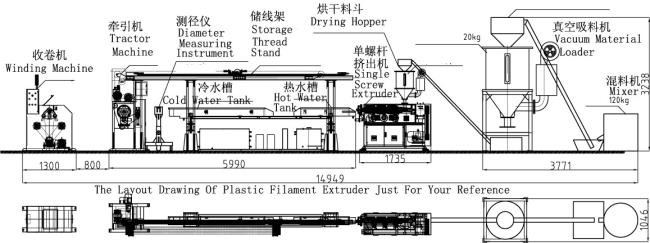

Machine Composition
| Item | Equipment Line | QTY/SET |
| 1 | Mixer Machine | 1 |
| 2 | Vacuum Loader | 1 |
| 3 | Hopper Dryer | 1 |
| 4-1 | Single Screw Extruder | 1 |
| 4-2 | Die Head | 1 |
| 5 | Water Tank | 1 |
| 6 | Tractor Machine | 1 |
| 7 | Storage Thread Stand | 1 |
| 8 | Roundness Laser | 1 |
| 9 | Rolling Up Machine | 1 |
| 10 | Vacuum Packing | 1 |
Shipping And Packing
Wooden base plate, damp proof plastic lining, fully-closed plate-box external.
