Double Screw Force Feeder Machine System , Multi Screw Extruder 7.5KW Power
Double Screw Force Feeder Machine System , Multi Screw Extruder 7.5KW Power

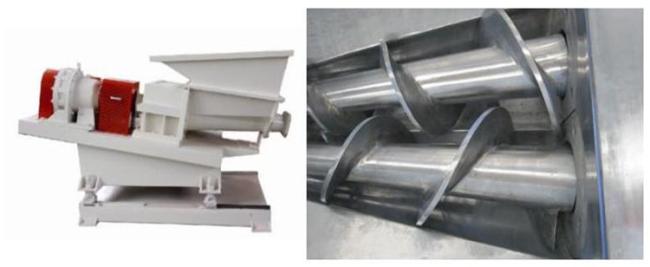

Twin screw force feeder machine system with best price
The variable speed regulation with the AC frequency control technology or the DC speed regulation technology is used for the extruder.
It has the welded feeding barrel of jacket type where cooling water or hot oil/hot water/steam can be lead through to control the temperature and meet the technological requirement for different kinds of stock.
The working surface of all parts in contact with stock are plated with hard chrome to resist abrasion and corrosion.
The double conical screws for feeding are of the tapered convergent type with variable pitch, which raises the extruding capacity. Meanwhile, the flat die head improves the extrusion density and planeness.
Conical twin screw force feeder specification:
|
------- Motor power: 7.5kw, using "ABB" frequency Inventor -------Feeder screw: 2 PCS, twin screw force material down, Nitrogen & chroming treatment, burnished surface. -------Body : polishing treatment inner side . hard chroming treatment. -------Hopper : polishing treatment inner side . hard chroming treatment. -------Conical force feeder applying electric heating system for body. -------Feeding hole has heating system as well. |
Twin screw force feeder Type
| Model | Power kw | Capacity kg/h |
| GSZ-45 | 1.5 | 10-30 |
| GSZ-65 | 4 | 30-100 |
| GSZ-75 | 7.5 | 120-350 |
| GSZ-100 | 11 | 350-1000 |
Conical twin screw force feeder Application:
