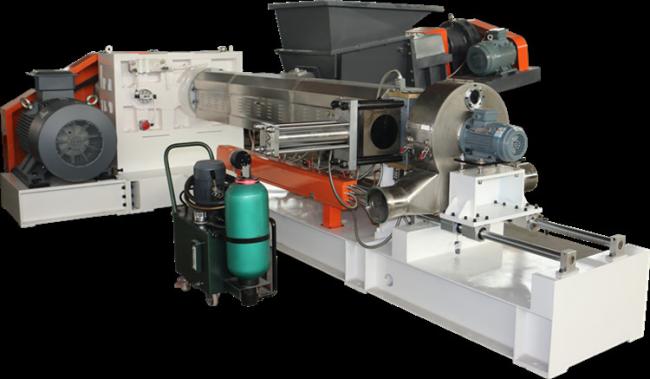

EVA Foam Series Granulator Mixer Single Screw Plastic Extruder Force Feeder Machine
EVA foam series granulator mixer single screw extruder force feeder machine
Our machine can produce profile shapes products according to customers' requirement, only need to change the mould. It could produce EVA material steering wheel coat inner ring ,decorative strip ,handbag inner strip or handbag handel inner strip, it also could be used in furniture edge strip.
EVA is a foaming material. There are a lot of advantages,such as good elasticity, good cushion, not distortion Anti-vibration, heating insulation, dam-proof, prevent-chemical corrode and so on.
Specification
| Model | Kneader | Kneader motor power | L/D | Diameter | Motor Power |
| GSD-100 | 35 L | 55kw | 12-22:1 | 100mm | 37-55 kw |
| GSD-120 | 55-75 L | 75-100 kw | 12-22:1 | 120mm | 55-75 kw |
| GSD-150 | 110 L | 160 kw | 12-22:1 | 150MM | 75-110 KW |
| GSD-180 | 150 L | 220 kw | 12-22:1 | 180mm | 90-132 kw |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Machine Composition
| Model | Machine | Quantity |
| 1 | kneader | 1 set |
| 2 | Twin screw force feeder | 1 set |
| 3 | single screw extruder | 1 set |
| 4 |
die face hot cutting system |
1 set |
Machine details
1. Name: Kneader
------Capacity: 75L
------Output: 60-85kg/batch
------Pressure: 0.5-0.7Mpa
------Motor Power: 110kw
------Tilting Motor Power: 5.5kw
------Air Cylinder: 420mm
------Speed: 36/27 RPM
------Weight: 10 ton
2. Name: Twin screw force feeder
------- Motor power: 11kw, using "ABB" frequency Inverter
-------Feeder screw: 2 PCS,twin screw force material down, Nitrogen & chroming treatment, burnished surface.
-------Body : polishing treatment inner side . hard chroming treatment.
-------Hopper : polishing treatment inner side . hard chroming treatment.
-------Conical force feeder applying electric heating system
3. Name: Single screw extruder
Gear box
------Speed reducing system combine with torque distributing system together, high torque
-----speed rate:16:1
-----Gear: high speed heavy load hard surface, gear axle material is 20CrNi2MOA, HRC58-62;
----lubricant oil cooling system: oil pump motor 0.75kw；
4. Name: Die Face Hot Cutting System
------Die face pelletizer: 2.2kw, “ ABB” inverter
------Cover: stainless steel,one set
------First cyclone separator : φ800m, stainless steel; φ160mm stainless steel pipes; flange connector; blower 5.5kw.
-----Second cyclone separator:φ800m, stainless steel; φ160mm stainless steel pipes;flange connector; blower 4kw.
------Screen vibrator: length:2.5m,one piece, stainless steel material.
-----Silo box:1m3;stainless steel; stainless steel pipes; flange connector; blower 3kw.
