Wet Granulation Plastic Pelletizing Machine , Twin / Single Screw Extruder

Wet granulation PVC pelletizing machine twin screw single screw granulator

The main working way of the PVC granulator is pelletizing with wet granulation. Through a certain amount of water or steam, the basic fertilizer is fully chemically reacted after the body is humidified in the cylinder. Under certain liquid phase conditions, the rotating movement of the barrel is used to make the extrusion pressure of the material into the ball.

The main advantage is to use steam to heat moisture, improve the temperature of the granulation material itself, reduce the granulation water, reduce the load of the dryer, and improve the working efficiency. The granulating rate of the rotary drum granulator can reach 70%, and the equipment is simple in operation, flexible in operation and convenient in maintenance. The equipment is lined with ultra high molecular weight polyethylene (UHMW-PE), which eliminates the sticky wall phenomenon of the material, reduces the labor strength of the workers, and greatly prolongs the service life of the equipment.


Machine introduction


Technical parameter

Capacity......... 200-600Kg/h
One feed quantity...... less than 120Kg/h
Total volume / effective volume........300L/150L
Spindle speed........380/735r.p.m
Speed regulation...... change pole
Heating way...... self-friction
Material heating/mixing time...... at room temperature of about 110 C /10min
Discharging way...... pneumatic
Discharge compressed air pressure...... 0.39~0.49MPa
Motor...... AC motor
Inner cylinder material...... stainless steel.
Pot cover material...... cast aluminum Z102
Material of discharge port...... cast aluminum Z102
Stir mixing material......... Stainless steel...
Screw feeder.......500 screw feeder, hopper stainless steel.

First-stage machine

Deceleration box
1) the deceleration and torque distribution parts are integrated into one, and the structure is compact.
2) radial bearing of needle roller bearing and bearing deceleration torque distribution system;
3) the gear is made of high-quality alloy material, precision is manufactured according to the accuracy of ISO1328-1995 cylindrical gear, and all gears are carburized and hardened. The tooth profile is trimmed by special grinding software to ensure gear strength, uniform tooth load, high strength, low noise and low vibration.

screw
1) the screw is a building block structure;
2) mandrel material: 40CrNiMoA, a threaded element,and mandrel for involute connection, high strength, large load bearing, easy assembly and disassembly.
3) the material of screw element is high-quality high-speed tool steel W6MO5CR4V2, high-temperature vacuum quenching heat treatment.
4) overall hardness: HRC60-64;
5) screw head and cap are connected to reverse teeth to ensure fastening.

Barrel
1) material: 45# steel is the base, and the inner hole is high-quality double alloy bushing.
2) the first cylinder body is the feed cylinder body, the sixth cylinder body is a natural exhaust cylinder body, the ninth cylinder body is a vacuum cylinder body, and the other cylinder body is a closed cylinder body.
3) the tube is cooled by soft water.
4) the inner six corner high strength bolts are connected between the cylinders.
5) heating section: the feed zone is not heated, and the other uses high-quality cast aluminum heater.

Second stage machine

Deceleration box:

a gear drive with high precision hard tooth face thrust seat designed by ZLYJ series professional for single screw extruder is designed to adopt various technical specifications stipulated in JB/T8853-2001 "cylindrical gear reducer". The output shaft adopts high strength 42CrMo, and other gear wheels and shaft parts are used for high strength 20CrMnTi material. Material: the gear is processed by carburization, quenching and grinding, the gear precision is high and the hardness is high, the gear precision is GB10095-88,6, the tooth surface hardness is HRC-54 to 62, the thrust bearing is arranged at the front end of the hollow output shaft, the axial thrust of the screw is subjected to the screw working, the whole machine is small, the bearing capacity is high, the transmission is stable.

Screw
1) the material is 38CrMoALA nitriding, nitriding HV950-1050, deep 0.6-0.75mm, brittleness less than II grade, screw plating hard chrome plating.
2) the core of the screw is cooled by water

Barrel
1) the material is 38CrMoALA nitriding, nitriding HV950-1050, deep 0.6-0.75mm, brittleness less than II grade;
2) the cylinder is cooled by water.
3) the tube is slotted, the copper tube is made, and the water is cooled.
4) the shield is added to the cylinder, and the stainless steel is made of.
5) heating section: using high quality cast aluminum heater
6) the machine head is heated by the mould temperature machine

Main Technical Parameters:

After-sale service & Technical support:
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Quick reply.
* View our factory

After-sales service
* Traning how to install the machine, training how to use the machine
* Engineers are available to service machinery overseas
* One year guarantee for the machine expect the spare part, we can supply lifelong technology service to solve any problem form you.

Contact
Nanjing GS-mach Extrusion Equipment Co., Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District, Nanjing China
Mobile Phone/ Whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

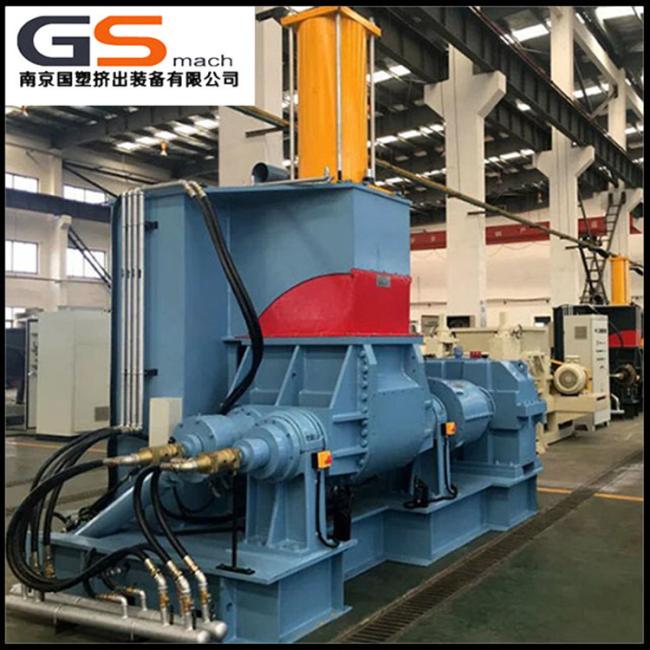

Product Picture:
