Polymer Recycle Pet Pelletizing Machine , Recycling Plastic Granulator Machine
Polymer Recycle PET Pelletizing Machine Plastic Recycling Granulator Machine
General Information
Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top-quality pellets.
-----Power Supply
-----50/60HZ 220/380/480 V 3P OR CUSTOM POWER
-----Total Power:150KW Actual Power:90KW
-----Water Supply
-----Recycling water: water pressure:～0.45MPa
-----Water temperature:≤38℃
-----Industrial soft water(none-ion water )water temperature ≤38℃
-----Circulating water: for barrels cooling; using soft water(distilled water) to prevent scale
-----External circulating water: for cooling internal circulating water and water trough
-----Water supply suggestion: build pool 25~30m3outside of workshop and pump the water
-----Area
-----Flat area with space about 13*1.2*2.4 m(L, W, H)
-----Conductive dust free area for electric cabinet, temperature less than 38℃
Twin screw extruder Models
| Model | GS-20 | GS-35 | GS-50 | GS-65 | GS-75 | GS-95 |
| Main Motor | 4 | 45-22 | 37-75 | 45-75 | 75-160 | 132-250 |
| Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed (rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw Material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Machine Details
----- Main motor:
----- Y2 type level 4 AC motor
----- Power:110kw
----- Screw:
----- Diameter:φ71mm
----- L/D: 44:1
----- Barrel:
-----Material:45# steel is as body, ∞ inner hole adopts fine double alloy casting bush；
----- Heating section:
----- adopt the high quality casting aluminum heater

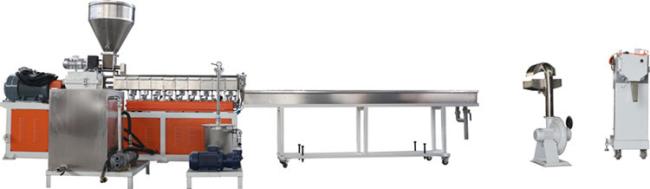

The main components:
| Model | Machine | Quantity |
| 1 | Spiral Loader Feeder | 1 set |
| 2 | Twin screw extruder | 1 set |
| 3 | Electrical control system | 1 set |
| 4 | Water strand cutting system | 1 set |
Our Service
------Packing type: Wooden base plate,damp proof plastic lining,fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 40% by T/T in advance,delivery against payment of 60% balance after qualified acceptance
------Leave factory testing: before leaving factory,equipment should be tested by both parties.Test material offered by buyer
------Installation: we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement;the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day,estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after leaving factory,damaged
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
