PEEK PET 3d Printer Filament Extrusion Line 30 Kg/H Plastic Filament Extruder
PEEK PET 3d printer filament Extrusion line 30 kg/h plastic filament extruder
3D printer filament extruder consists of the single screw extruder, water tank, tractor machine, laser, rolling up machine. its control system consists of an intelligent temperature control table, imported electrical components, and converter. The main feature of this line stable extrusion, good plasticizing effect, a high degree of control precision, convenient operation etc.
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

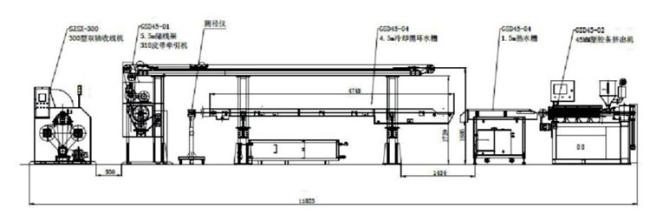

Machine Composition
| Item | Equipment line | QTY/SET |
| 1 | Mixer | 1 |
| 2 | Vacuum Loader | 1 |
| 3 | Hopper dryer | 1 |
| 4-1 | Single screw extruder | 1 |
| 4-2 | Die head | 1 |
| 5 | Water tank | 1 |
| 6 | Tractor machine | 1 |
| 7 | Storage thread stand | 1 |
| 8 | Roundness Laser | 1 |
| 9 | Rolling up machine | 1 |
| 10 | Vacuum Packing machine | 1 |
Product Application
1)Wire extrusion for PLA,ABS ,PP, PC, TPU,etc
2)Extrusion for single/multi-cavity wire of Wire extrusion for PLA,ABS ,PP, PC, TPU,etc
3)Filament formula development
4)Optimization and control of filament extrusion processing parameters
|
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
|
|||
|
Item
|
Unit
|
GS-35/25
|
GS-45/28
|
|
Screw Diameter
|
mm
|
35
|
45
|
|
Length Diameter Ratio
|
L/D
|
25
|
28
|
|
Screw rotating Speed
|
rpm
|
100
|
|
|
Pulling Speed
|
m/min
|
100
|
|
|
Max. production
|
kg/h
|
15
|
20
|
|
Diameter
|
mm
|
Φ1.75/Φ3.00
|
|
|
Accuracy
|
mm
|
±0.02
|
|
|
Power of motor
|
kW
|
5.5
|
11
|
|
Total Power
|
kW
|
17
|
27
|
|
Storage capacity
|
m
|
100
|
|
|
Size(L*W*H)
|
mm
|
9579×1513×2393
|
9579×1513×2393
|
The picture of 3.0mm filament machine for 3D printing with two axis measuring diameter
