Color Masterbatch Twin Screw Compounding Extruder PP PE Masterbatch Granulator
Color masterbatch twin screw extruder machine PP PE masterbatch granulator
When making masterbatch, it often needs to change color. If necessary to replace the product, open the processing area in a few minutes, and analysis the mixing process by observing the melt profile on the whole screw. At present, when the ordinary twin screw extruder is changing the color, it needs a lot of cleaning machine to make the machine, not only time consuming, electricity, but also the raw material. The split twin screw extruder can solve this problem. Only a few minutes after changing colors, the machine can be opened quickly and manually cleaned, so that no cost or less cleaning material can be used, and the cost is saved.
Specification
| Model | GS-50 | GS-65 | GS-75 | GS-95 |
| Main motor | 35-75 | 45-75 | 75-100 | 132-250 |
| Screw diameter | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw material | bi-metal | bi-metal | bi-metal | bi-metal |
Water Supply
-----Recycling water: water pressure:～0.45MPa
-----Water temperature:≤38℃
-----Industrial soft water(none-ion water )water temperature ≤38℃
-----Circulating water: for barrels cooling; using soft water(distilled water) to prevent scale
-----External circulating water: for cooling internal circulating water and water trough
-----Water supply suggestion: build pool 25~30m3outside of workshop and pump the water
Area
-----Flat area with space about 13*1.2*2.4 m(L, W, H)
-----Conductive dust free area for electric cabinet, temperature less than 38℃
| Model | machine |
| 1 | Spiral Load Feeder |
| 2 | Twin screw extruder |
| 3 | Electrical control system |
| 4 | Pelletizing system |
-----Water tank: S/S, length:5 meter.
-----Dryer: Motor Power:3kw,one set
2. Air cooling hot cutting system
------Die face pelletizer: 2.2kw, “ ABB” inverter
------Cover: stainless steel,one set
------First cyclone separator : φ800m, stainless steel; φ160mm stainless steel pipes;flange connector; blower 7.5kw.
------Second cyclone separator:φ800m, stainless steel; φ160mm stainless steel pipes;flange connector; blower 5.5kw.
------Screen vibrator: length:2.5m,one piece, stainless steel material.
------Silo box:1.5m3;stainless steel; stainless steel pipes; flange connector
3. Water ring pelletizing system
----Water-ring hot cutting pelletizer: 2.2kw, one set
------Adjust Speed Method: adopting “Delta” AC frequency conversion speed
------Hot cutting cover: Stainless steel. 1pc
------Water pump:one set,power: 3kw
------Diversion trench: stainless steel material,1PC
------Centrifugal dehydrator:one set,5.5kw
4. Under water pelletizing system
------Diverter valve guides the melt stream either through the screen pack or via a bypass system around the screen pack to the strand die.The value avoids freeze-off of the die plate holes Hydraulic station offer the pressure Imported die plates from USA
Contact
Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone/whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com

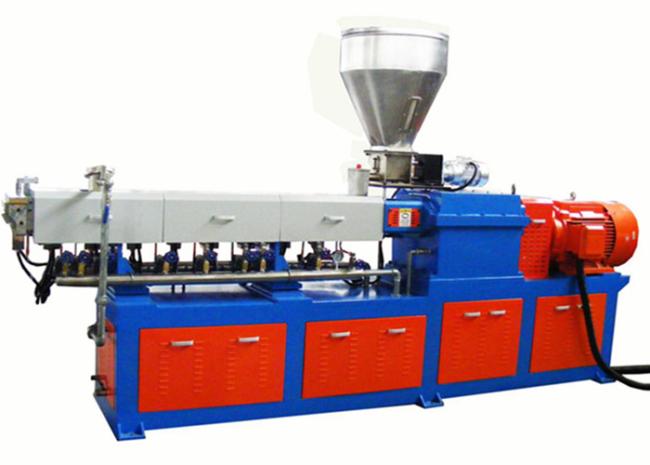

Product Picture:
