Used SHACMAN F3000 8X4 Heavy Dump Truck 10 Tires Second Hand 380 HP Tipper Truck
SHACMAN F3000 8X4 Dump Truck
| Basic Information | |
| Announcement Model | SX3315DT366 |
| Drive type | 8X4 |
| Wheelbase | 1800+3600+1350mm |
| engine | Weichai WP12.380E32 |
| Gearbox | Fast 12JSD160T |
| Rear axle ratio | 4.769 |
| Body length | 10.435 m |
| Body width | 2.49 m |
| Ride height | 3.45 m |
| Front track | 1939/1939mm |
| Rear track | 1860/1860mm |
| Vehicle weight | 14.6 tons |
| Rated load | 25.93 tons |
| Total mass | 30.66 tons |
| Tonnage level | Heavy Truck |
| Approach Angle | 28 degrees |
| Departure angle | 20 degrees |
| Remark | Medium-length flat-top cab, clutch (430 diaphragm) |
| Engine parameters | |
| engine model | Weichai WP12.380E32 |
| Engine Brand | Weichai |
| Number of cylinders | 6 cylinders |
| Fuel type | diesel fuel |
| Displacement | 11.596L |
| Emission Standards | National Three |
| Maximum horsepower | 380 hp |
| Maximum output power | 280kW |
| Maximum Torque | 1600N·m |
| Maximum torque speed | 1300-1400rpm |
| Rated speed | 2200rpm |
| Cargo box parameters | |
| Length of cargo box | 7.6 m |
| Cargo box width | 2.3 m |
| Cargo box height | 1.1m |
| Cargo box form | Self-unloading |
| Gearbox parameters | |
| Gearbox Model | Fast 12JSD160T |
| Gearbox brand | Fast |
| Forward gear | 12 gears |
| Reverse gear number | 2 |
| tank | |
| Fuel tank capacity | 300L |
| Chassis parameters | |
| Rear Axle Description | MAN+Drum |
| Rear axle allowable load | 17700kg |
| Speed Ratio | 4.769 |
| Number of springs | 14/13 |
| tire | |
| Tire specifications | 12.00R20 |
| Number of tires | 12 |

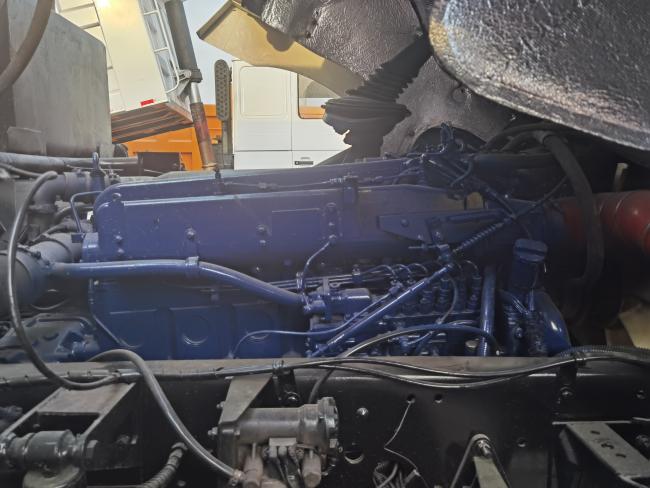

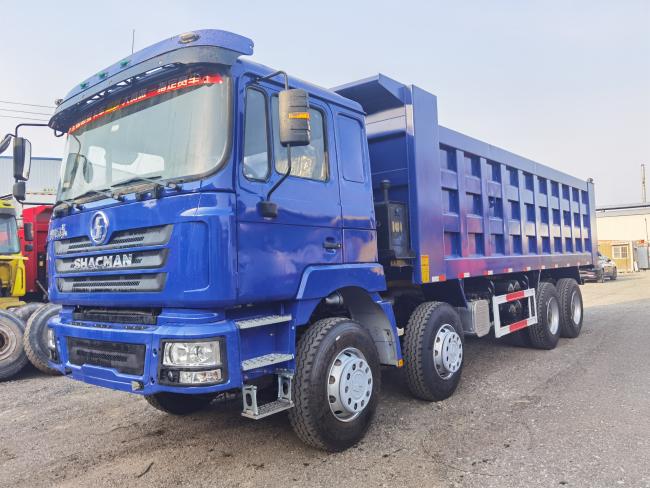

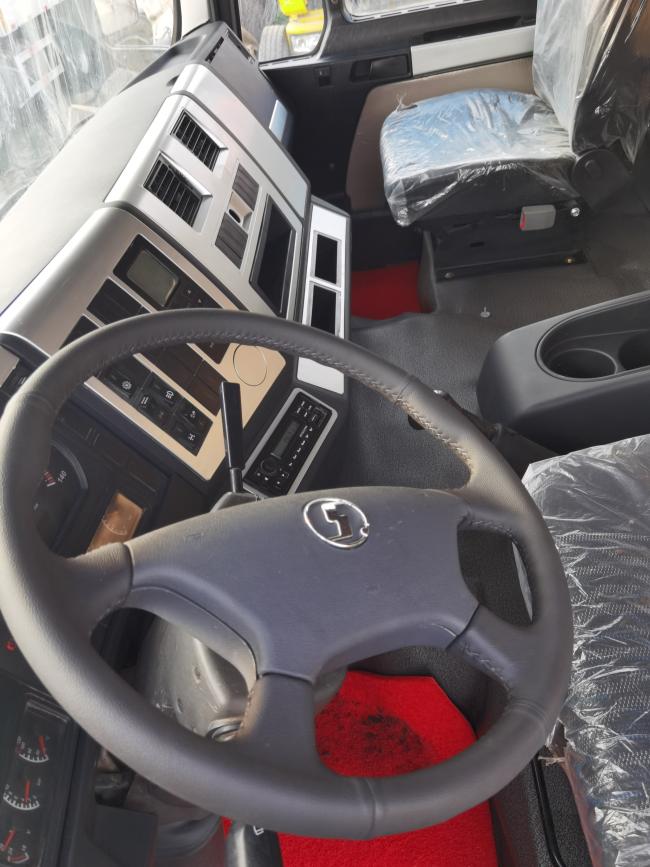

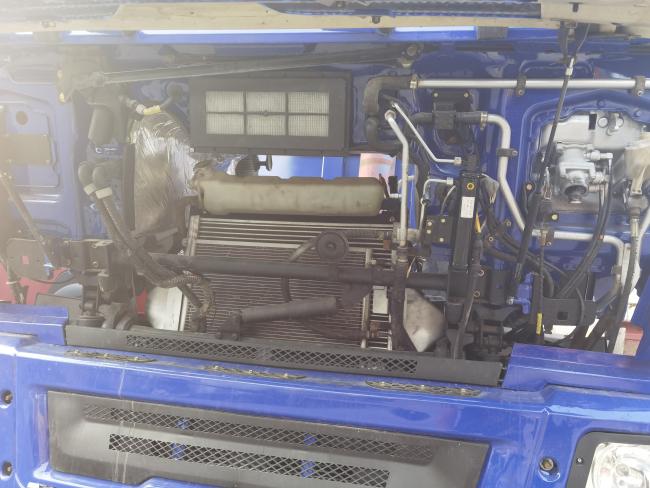

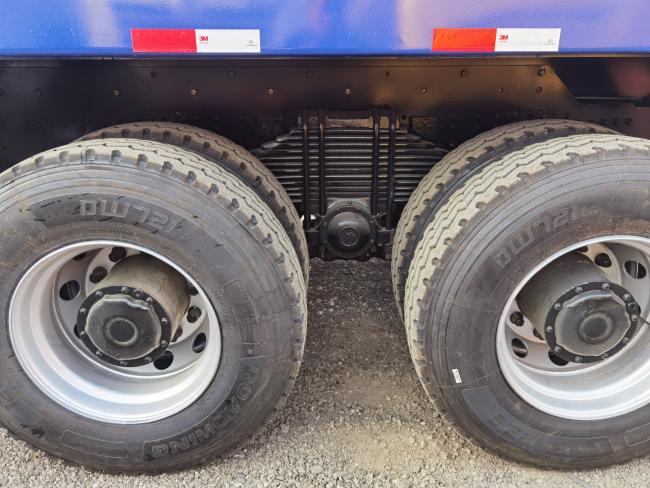

Pictures of Used SHACMAN F3000 8X4 Dump Truck
After-sales Service Provided:
Engineers available to service machinery overseas
Our Service:
Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.
More than 20 years experience to dealing with all types of used engineering machinery and shipment service all over the world.
3 Years warranty for engine and pump.
Our Business:
We are supplying various used constrction machines globally for users from different countries. Our machine stocks include excavators, bulldozers, wheel loaders, road rollers, motor graders, dumper trucks, forklifts and cranes,and we alwyas trying to provide machines with excellent quality and good prices.
