100% Japan D6D Old Caterpillar Bulldozer / Used Cat Dozers 2012 Year
Price:
negotiation
MOQ:
negotiation
Delivery Time:
5-7 working days after order confirmed
Brand:
Shantui
Product Description

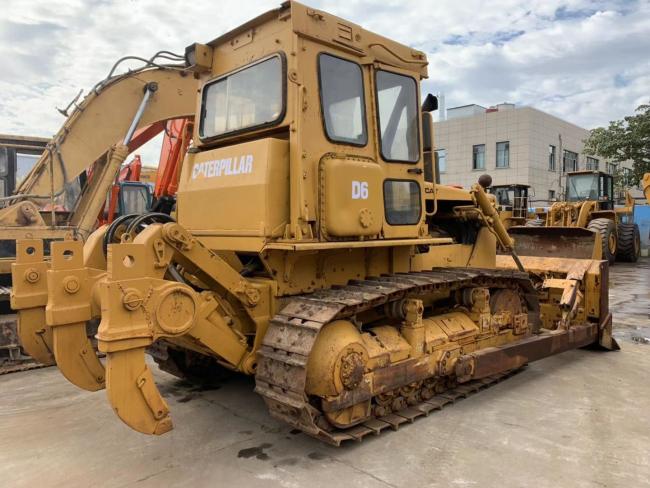

100% Japan D6D Old Caterpillar Bulldozer / Used Cat Dozers 2012 Year
Parameters
| Engine | |
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 104 kw |
| Displacement | 10.5 L |
| Aspiration | turbocharged |
| Operational | |
| Operating Weight | 9235 kg |
| Fuel Capacity | 238 L |
| Hydraulic Fluid Capacity | 45.8 L |
| Transmission | |
| Transmission Type | powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Max Speed - Forward | 10.8 km/h |
| Max Speed - Reverse | 12.9 km/h |
| Undercarriage | |
| Ground Pressure | 65 kPa |
| Ground Contact Area | 1.5 m2 |
| Standard Shoe Size | 406 mm |
| Number of Track Rollers per Side | 5 |
| Track Gauge | 1520 mm |
| Hydraulic System | |
| Relief Valve Pressure | 15513.2 kPa |
| Pump Flow Capacity | 166 L/min |
| Standard Blade | |
| Width | 3200 mm |
| Height | 1128 mm |
| Capacity | 3.3 m3 |
| Blade Angle (both directions) | 12 degrees |
| Cutting Depth | 472 mm |
| Dimensions | |
| Length w/o Blade | 3200 mm |
| Width Over Tracks | 1980 mm |
| Height to Top of Cab | 2900 mm |
| Length of Track on Ground | 1830 mm |
| Ground Clearance | 360 mm |
