Hitachi EX200-5 excavator parameter configuration

power traditional power
bucket backhoe
power traditional power
performance
Ground specific pressure (Kpa) 42.1
Walking speed (km/h) 3.4/5.5
Gradeability (%)70/35°
power system

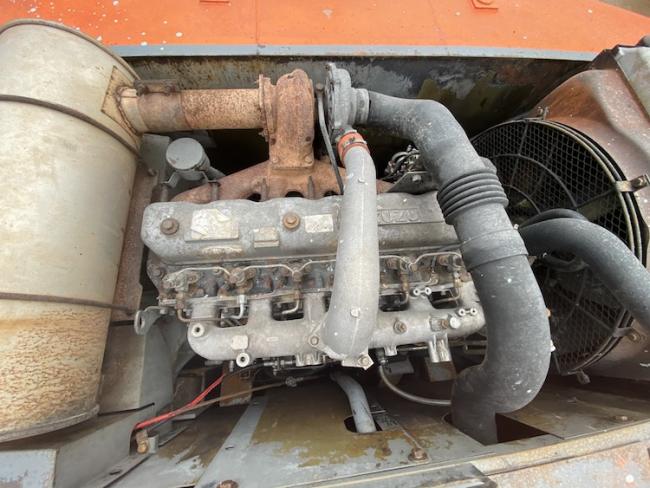

Engine model Isuzu ISUZU A-6BG1T
Rated power (kw/rpm) 98.4/1950
Displacement (L) 6.5
Number of cylinders (pcs) 6
Cooling method water cooling
Working form turbo
oil capacity
Fuel tank (L) 310
Hydraulic tank (L) 200
Engine oil replacement amount (L) 25
Coolant(L)23
body size
Total transport length (mm) 9620
Overall transport width (mm) 2800
Overall transport height (mm) 3090
Cab height (mm) 2870
Counterweight ground clearance (mm) 1030
Track grounding length (mm) 3770
Track shoe width (mm) 600
The total width of the track (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm)450

Recommendation for Related Equipment:

Kobelco SK200(20ton) excavator,CAT excavator 320B, 320C, 320D, E200B

HItachi excavator EX200-3,  ZX200,

Komatsu excavator PC200-6, Komatsu PC200LC-7, PC220-7, PC220-8,
