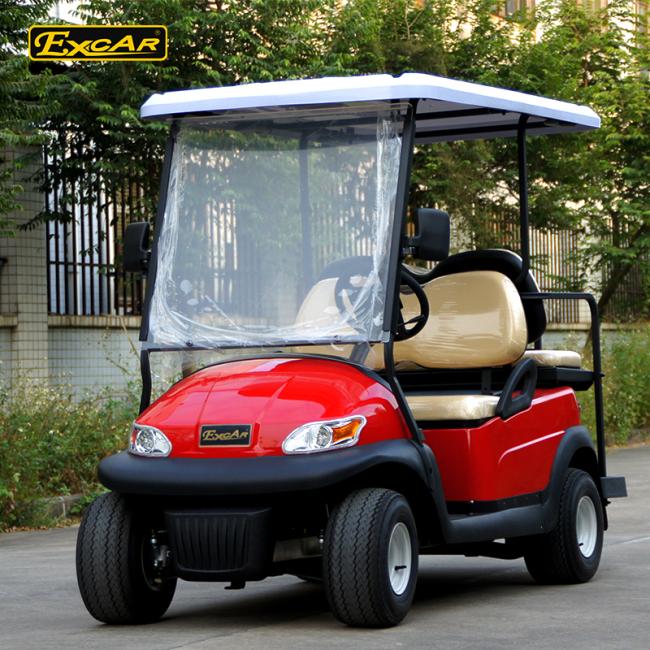

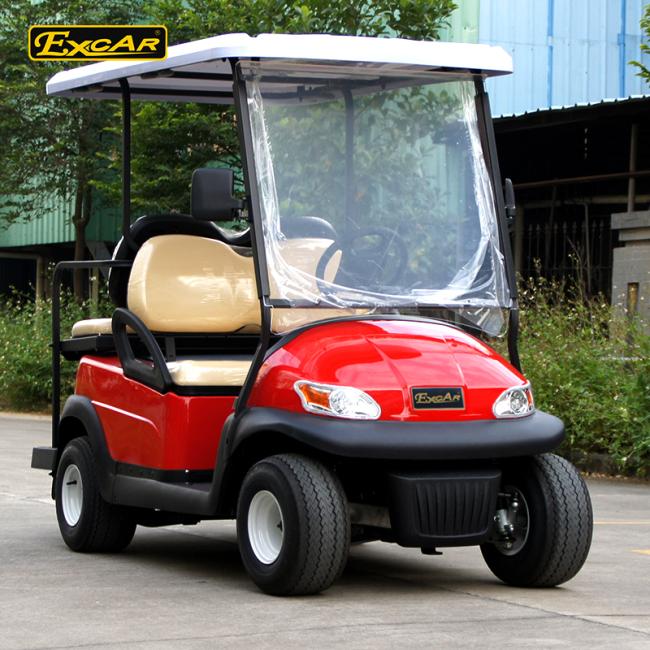

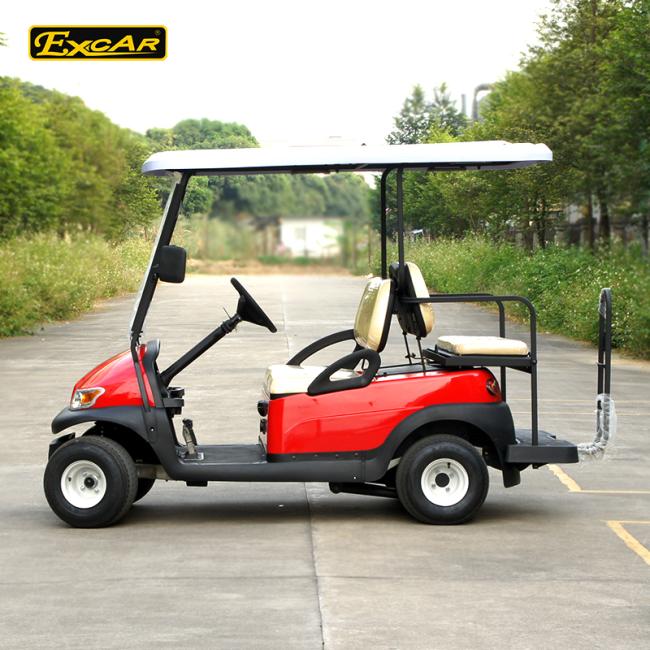

Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
20 days
Brand:
Excar
Product Description
Product Description
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger | High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Model:A1S2+2 | |
| Passenger capacity | 4 person |
| Chassis | Aluminum chassis |
| Standard specification | |
| Dimension | 3200*1200*2000mm |
| Load | 400kgs |
| Groad clearance | 150mm |
| F/R tyre distant | 860/970mm |
| Wheelbase | 1670mm |
| Net weight(ex.Bat) | 400kg |
| Climbing capacity | 30% |
| Endurance mileage | 80-100km |
| Max forward speed | 35km/h |
| Drive system | |
| Motor | 48V 3.7KW USA ADC |
| Battery | USA Trojan T-875 6*8V |
| Charger | KN offboard charger |
| Tranaxle | Italian GRAZIANO gear ratio 1:12 |
| Controller | Curtis controller 48V 400A |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories
.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
