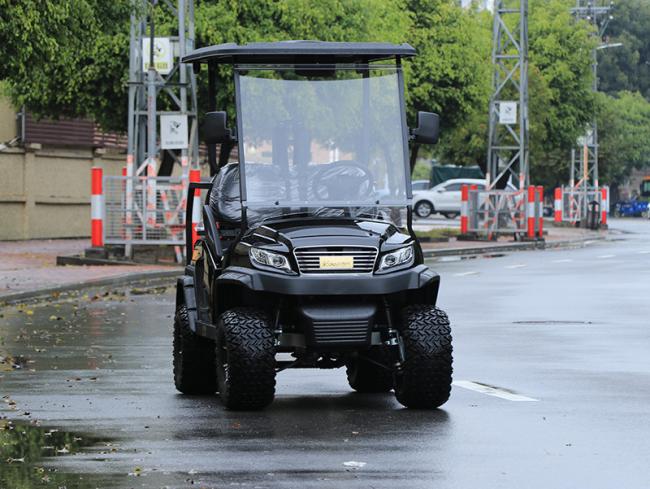

Black Lifted 2+2 Seater Electric Hunting Golf Car For Amusement Parks, Golf Course
Basic specification
| Item | Description |
| Brand | Excar |
| Model | M1S2+2FF |
| Overall dimensions (L x W x H) | 3200x1200x1800mm |
| Ground clearance | 150mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201,275A | Curtis controller 1234E-5221, 275A, |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs | Trojan battery, T875,8V*6pcs |
| Transaxle |
Axle with gear ration 1:12 |
Axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 4 | 4 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Macpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Tyre | 215/35-12 Tyre |
Our Service
1.For all your inquires about us or our products, we will reply you in detail
within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize
the electrical golf cart body colour and other things.
3.We have sales who have engage in LED about 8years to help you custom-made the sales solution.
4.We have engineers who has the experience in Toyota for car's engineering projects to help you solve all the problems of technical.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
