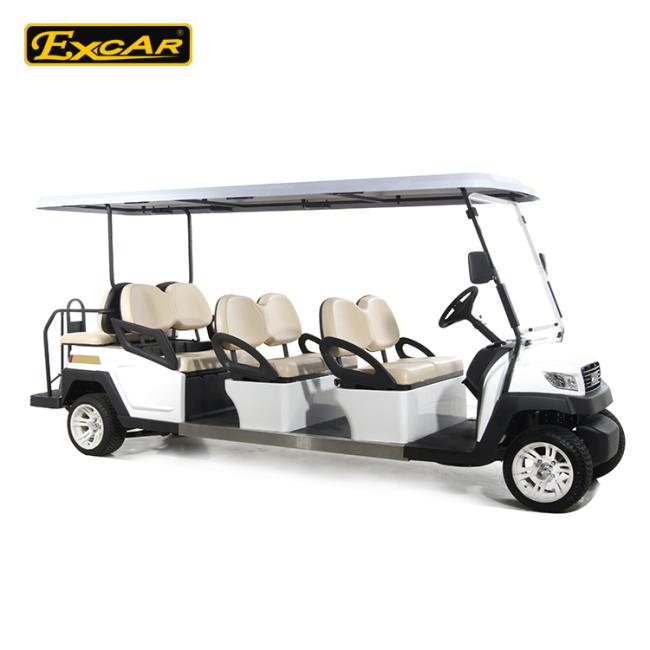

3.7kw DC Motor Electric Sightseeing Car 8 Seat White Electric Shuttle Bus
CE Certificate ISO Approved 48V 3.7kw DC motor Sightseeing Car 8 seat white Colour Electric Sightseeing Carts
Basic specification
| Item | Description |
| Overall dimensions (L x W x H) | 4000x1200x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 3300mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 275A, imported from USA directly | Curtis controller 1234E-5321, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 8 | 8 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
