48V 3.7KW 11 Person Electric Shuttle Bus , Max. Forward Speed 45km/h
White 48V 3.7KW 11 seater golf cart electric sightseeing car china shuttle bus
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor | ADC brand Separately excited | ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle | Italian GRAZIANO axle |
| Charger | High Frequency onboard charger | High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 11 | 11 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 510kgs | 510kgs |
| Min. turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 4292x1219x1828mm |
| Ground clearance | 114mm |
| Wheelbase | 3300mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 48V, LED headlight (includes turning light and position light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Color Options

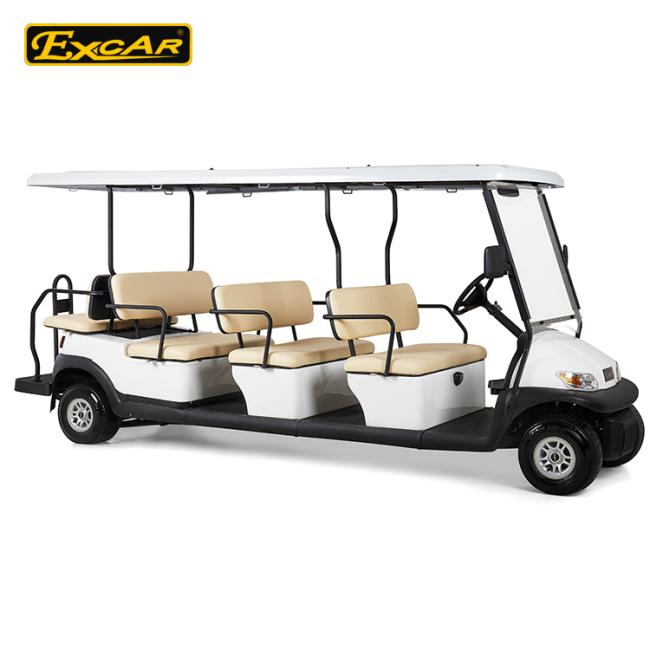

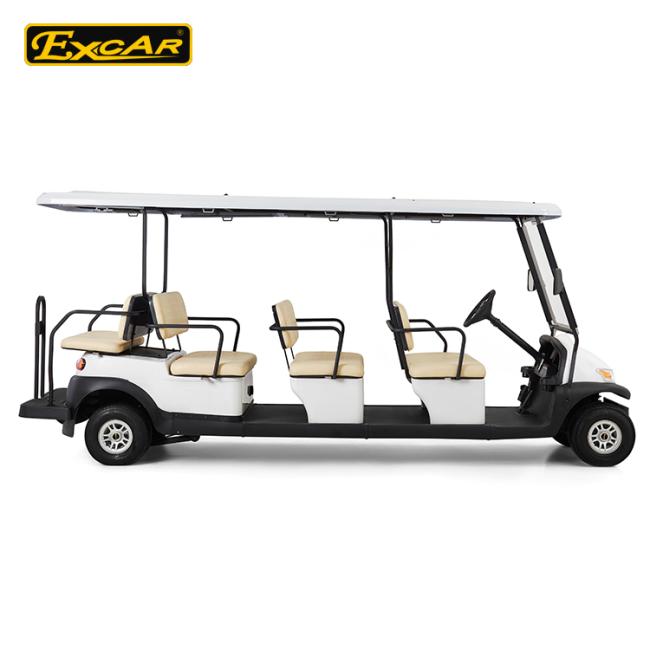

Product Image
Warranty
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date.
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit,if your order qty is big then we can give you some discount
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days
