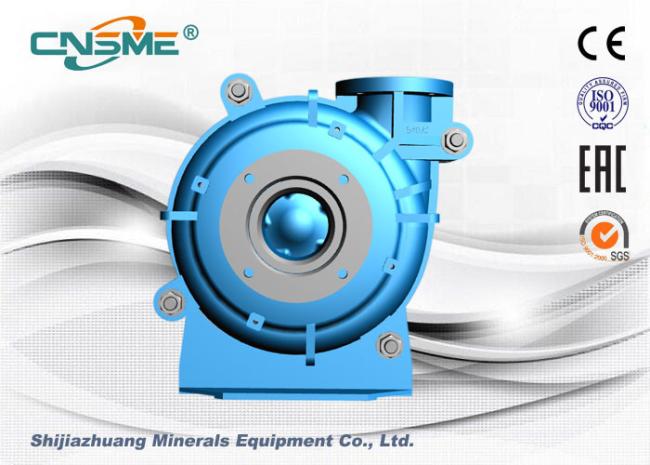

3 Inch Metal Lined Centrifugal Sludge Pump Horizontal Type
3 Inch Metal Lined Slurry Pump Centrifugal Horizontal Type Heavy Duty Industrial Sludge Pump
Introduction:
Shijiazhuang Minerals Equipment Co., Ltd is a professional manufacturer of slurry pumps, we produce horizontal slurry pumps, vertical slurry pumps, submersible slurry pumps, etc.
Shijiazhuang Minerals Equipment Co., Ltd has its own casting workshop, machines workshop, and assemble workshop, and with many years of experience, we also design special pumps and spare parts according to customers' requirements, if you have special demand, please feel free to contact us.
Our SH horizontal slurry pump is widely used in tailing mining, SH Slurry Pump for Tailing Mill, tailing disposal SH slurry pump, and tailing treatment SH slurry pump.
Suction diameter of our SH slurry pump for tailing mill:1inch(25mm) to 18inch(450mm).
The flow rate of our SH slurry pump for the tailing mill:10-6000m³/H
The head of our SH slurry pump for tailing treatment:3-100m
Application of SH slurry pump, SH mining Centrifugal pump
SH slurry pump is suitable for processing the high abrasion slurry or the material containing solid particles.
Metal smelting plant: convey slurry
Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants, etc.
Specifications:
|
Model |
SH/75C |
|
Outlet |
3-inch |
|
Capacity |
60~250m3/h |
|
TDH |
9~80m |
|
Rated Motor Power |
30Kw |
|
Speed |
1000~2750/min |
|
Max. Eff. |
71% |
|
NPSH |
4~6m |
|
Wet-end Parts Material |
A05, A07, A33, A49, A51, A61, R08, R26, , U01 U38 etc |
|
Type |
Size |
Frame |
Impeller:D3147A05 |
Shaft Seal Type |
Frame Rating(KW) |
Normal Max Speed(r/min) |
Passage Size(mm) |
|
SH |
75 |
C |
5 Closed Metal Vanes, Diameter: 245mm |
Gland Packing, Expeller, Mechanical Seal |
30 |
2750 |
36 |
Material: High Chrome Alloy A05
Material Chemical Requirements, Weight%
|
Description |
Material Name |
C |
Mn |
Si |
Ni |
Cr |
Mo |
Cu |
P |
V |
S |
Description |
Hardness |
|
A05 |
Ultrachrome |
2.92 |
0.98 |
0.54 |
0.8 |
27 |
≤0.8 |
... |
0.062 |
... |
0.051 |
27% Cr Erosion Resistant White Iron |
58-62HRC |

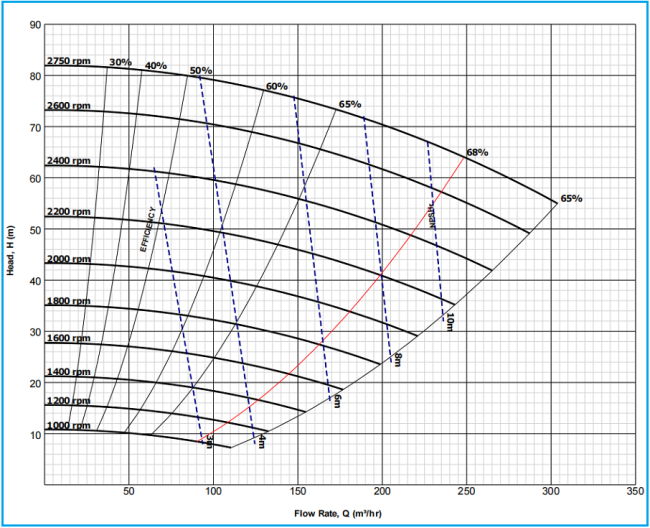

Performance Curve:

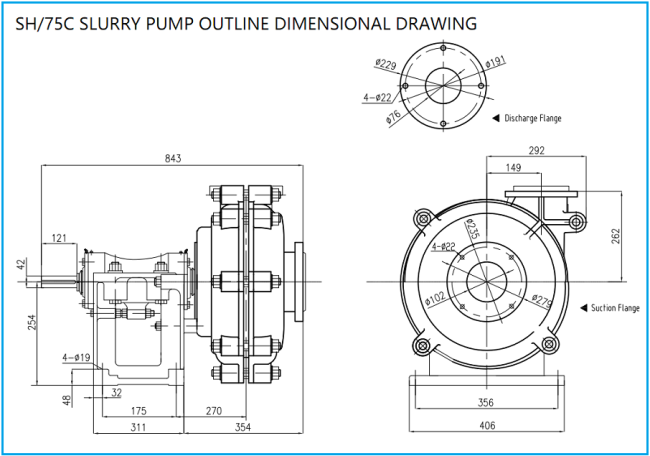

Outline Dimensional Drawing:

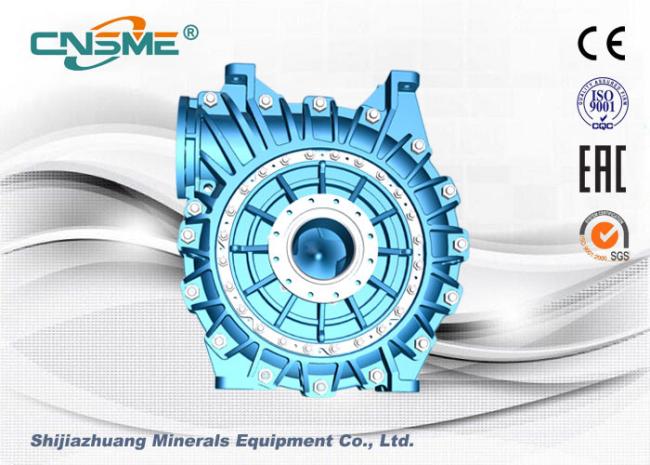

Similar Products(Replacement of Warman Centrifugal Slurry Pumps):
