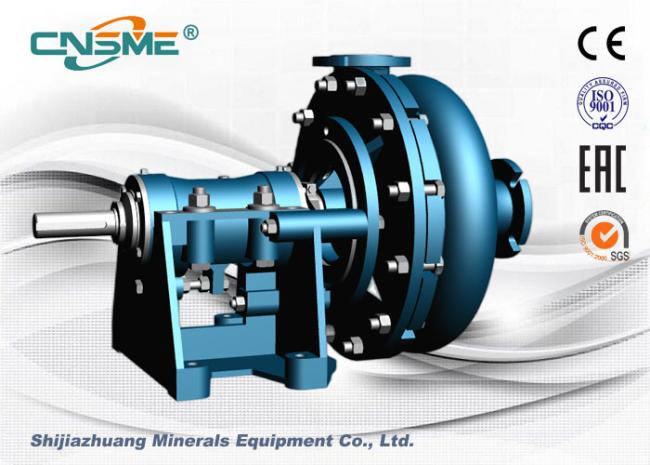

1.Discription of CNSME® 3-3TC Carbon Transfer Slurry Pump:
CNSME® 3-3TC Carbon Transfer Slurry Pump is designed specifically for continuous use in slurry type applications with larger or breakage sensitive particles.This range of vortex pump is capable of handling large as well as very soft particles,especially where particle degradation is of concern.The large volume internal profiles,combined with the recessed open impeller design,reduce particle interaction and limit protential blockages.
2.Features of CNSME® 3-3TC Carbon Transfer Slurry Pump:
Design and Unique Features:
Unlined all-metal wet end is suitable for vertical configurations.
• Double suction with unique recessed open impeller design to create vortex action.
• TC pump design transfers energy to the medium being pumped which enables "soft" transfer of solids to limit particle degaradation.
• Equally sized inlets and outlets determine maximum particle size the pump can handle limiting potential blocking.
• Hard metal fitted for longer operating life.
• Large volume casing design reduces internal velocities further decreasing wear and particle degradation.
3.Data Sheet of CNSME® 3-3TC Carbon Transfer Slurry Pump:
| Pump Details | General | |||||||
| Pump Manufacturer | Shijiazhuang Minerals Equipment Co., Ltd | |||||||
| Brand Name | CNSME | |||||||
| Country of Origin | China | |||||||
| Warranty Period | 12 Months, Not Inclusive of The Wear Parts | |||||||
| Pump Type | Vertical Carbon Transfer Pump | |||||||
| Model | 3-3-TV | |||||||
| Max Capacity | m3/hr | 120 | ||||||
| Max Head | m | 35 | ||||||
| Max Pump Speed | r/min | 1500 | ||||||
| Max Eff. : | % | 41 | ||||||
| BHP | kW | 4 | ||||||
| Suction Nominal Dia. | mm | 76 | ||||||
| Discharge Nominal Dia. | mm | 76 | ||||||
| Material Construction | ||||||||
| Casing | High Chrome Alloy A05 (ASTM A532, Type A, Class III) |
|||||||
| Impeller | ||||||||
| Back Liner | ||||||||
| Discharge Pipe | K1025 | |||||||
| Column | K1025 | |||||||
| Side Strainer | Natural Rubber | |||||||
| Lower Strainer | Grey Iron | |||||||
| Impeller | ||||||||
| Impeller Type | Close | |||||||
| Impeller Dia. | mm | 280 | ||||||
| Number of Vanes | 8 | |||||||
| Part Passing | mm | 76 | ||||||
| Impeller Material | High Chrome Alloy A05 | |||||||
| Hardness | HRC | 58-62 | ||||||
| Shaft | ||||||||
| Shaft Material | 45# Steel, Heat Treated (K1045) | |||||||
| Length (Can be Immerged in Water) | 1800mm | |||||||
4.Structure of CNSME® 3-3TC Carbon Transfer Slurry Pump:
5.Performance Curve of CNSME® 3-3TC Carbon Transfer Slurry Pump:
6.Dimensional Drawing of CNSME® 3-3TC Carbon Transfer Slurry Pump:
7. CNSME® 3-3TC Carbon Transfer Slurry Pump Applications :
CNSME® 3-3TC pump range is suited to a wide range of slurry applications in many industies.
Carbon Transfer Duties
"Soft"Particles
Sewage and Effluent
Sugar Beet
Diamond concentrate
Low Shear Duties
Food Industry
Fish Fry Releasing
Wash Potato
General Spillage
