SH/200ST 10 Inch All Metal Anti Abrasive Slurry Pump Single Stage For Metallurgical And Mining Industry

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 10 Working Days
Brand: CNSME
Product Description

SH/200ST 10-Inch All Metal Anti Abrasive Slurry Pump Single Stage for Metallurgical and Mining Industry


Introduction:

Shijiazhuang Minerals Equipment Co., Ltd is a professional manufacturer of slurry pumps, we produce horizontal slurry pumps, vertical slurry pumps, submersible slurry pumps, etc.

Shijiazhuang Minerals Equipment Co., Ltd has its own casting workshop, machines workshop, and assemble workshop, and with many years of experience, we also design special pumps and spare parts according to customers' requirements, if you have special demands, please feel free to contact us.

Our SH horizontal slurry pump is widely used in tailing mining, SH Slurry Pump for Tailing Mill, tailing disposal SH slurry pump, and tailing treatment SH slurry pump.

Suction diameter of our SH slurry pump for tailing mill:1inch(25mm) to 18inch(450mm).

The flow rate of our SH slurry pump for the tailing mill:10-6000m³/H

The head of our SH slurry pump for tailing treatment:3-100m



Application of SH slurry pump, SH mining Centrifugal pump

SH slurry pump is suitable for processing high-abrasion slurry or material containing solid particles.

Metal smelting plant: convey slurry

Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants, etc.



MAIN USAGES:



Alumina, Asbestos, Bauxite, Building Products, Cement, Coal, Chemical Fertilizer, Wolfram, Water and Sewage Treatment, Copper, Electric Utilities, Gold, Iron Ore, Lead and Zinc, Mineral Sands, Molybdenum, Sugar, Tin, Oil Shale, Phosphate, Potash, Paper and Pulp, Sand and Gravel, Silver, Steel, Titanium, Tobacco, used but not only used in the above industries.


Specifications:



Model

SH/200ST

Outlet

8-inch

Capacity

612~1368m3/h

TDH

11~61m

Rated Motor Power

560Kw

Speed

400~1100/min

Max. Eff.

71%

NPSH

4~10m

Wet-end Parts Material

A05, A07, A33, A49, A51, A61, R08, R26, , U01 U38 etc




Type

Size

Frame

Impeller: G8147A05

Shaft Seal Type

Frame Rating(KW)

Normal Max Speed(r/min)

Passage Size(mm)

SH

200

ST

5 CLOSED Metal Vanes, Diameter: 686mm

Gland Packing, Expeller, Mechanical Seal

560

1100

76




Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%



Description

Material Name

C

Mn

Si

Ni

Cr

Mo

Cu

P

V

S

Description

Hardness

A05

Ultrachrome

2.92

0.98

0.54

0.8

27

≤0.8

...

0.062

...

0.051

27% Cr Erosion Resistant White Iron

58-62HRC

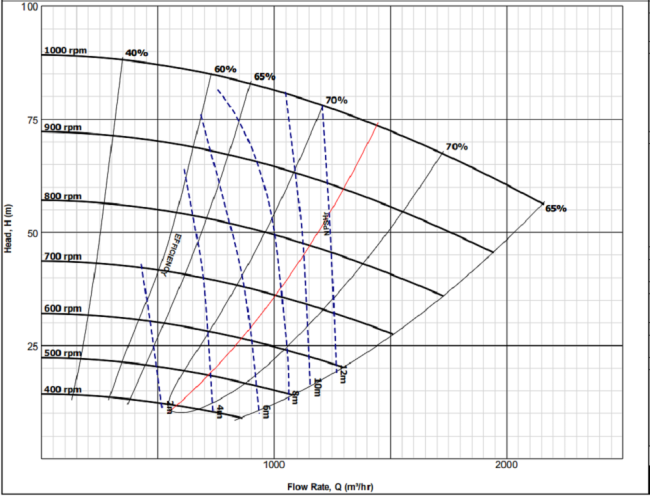

Performance Curve:

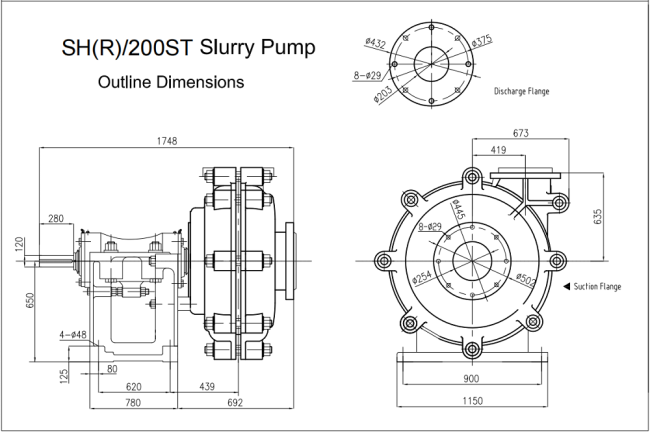

Outline Dimensional Drawing:

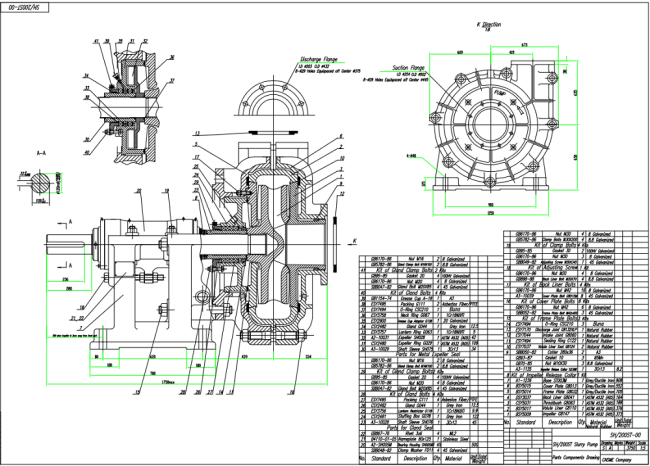

COMPONENTS DIAGRAM:
