SVR 65Q Corrosive Slurry Sump Pump 30Kw Submersible Sump Pump
Submersible Sump Pump , SVR / 65Q Corrosive Resistant Vertical Pump
Introduction:
There are many features of SV(R) pumps that are very different. The sump pump has a flooded [wet end" installed at the end of a cantilever shaft (no submerged bearings) and a dry drive.
The two main reasons for development of the vertical Slurry pumps were: To utilize dry motors, protected from flooding; To eliminate sealing problems.
In the vertical design where the cantilever is extremely long the first bearing arrangement is used.
We are a professional company in Hebei China offering our esteemed clients a wide range of superior quality abrasive slurry pumps. With many applications in wide variety of ash and coal handling plants, different types of slurry and sludge transfer industries, pumping and de-silting industies, they are quiet in demand from customers. Offering product is manufactured using high quality and superior parts that provide a reliable service. Furthermore, we are well known for customer satisfaction and industry leading rates.
Specifications:
| Model | SVR-65Q |
| Capacity | 23.4-111m3/h |
| TDH | 5-29.5m |
| Rated Motor Power | 30Kw |
| Speed | 700-1500r/min |
| Max. Efficiency | 50% |
| Standard Shaft Length | 1200mm |
Construction of Vertical Slurry Pump:
Materials of Construction:
| Part Description | Material |
| Casing | - Black Natural Rubber |
| Impeller | - Black Natural Rubber |
| Back Liner | - Black Natural Rubber |
| Shaft | Carbon Steel |
| Mounting Plate | Mild Steel |
| Strainers | Synthetic Rubber |
Specifications:
| Natural Rubber | Standard |
| Hardness(Shore A) | 52±3 |
| 300% Stretching Strength(MPa) | ≥4 |
| Tensile Strength(MPa) | ≥21 |
| Elongation at Break(%) | ≥500 |
| Tensile Set at Break(%) | ≤25 |
| Rubber to Metal Bonding Pull Strength(MPa) | ≥5 |
| Akron Abrasion cm3/1.61km | ≤0.08 |
| Acid & Alkali Resistant PH Value(Liquid) | 3-12≤65℃ |

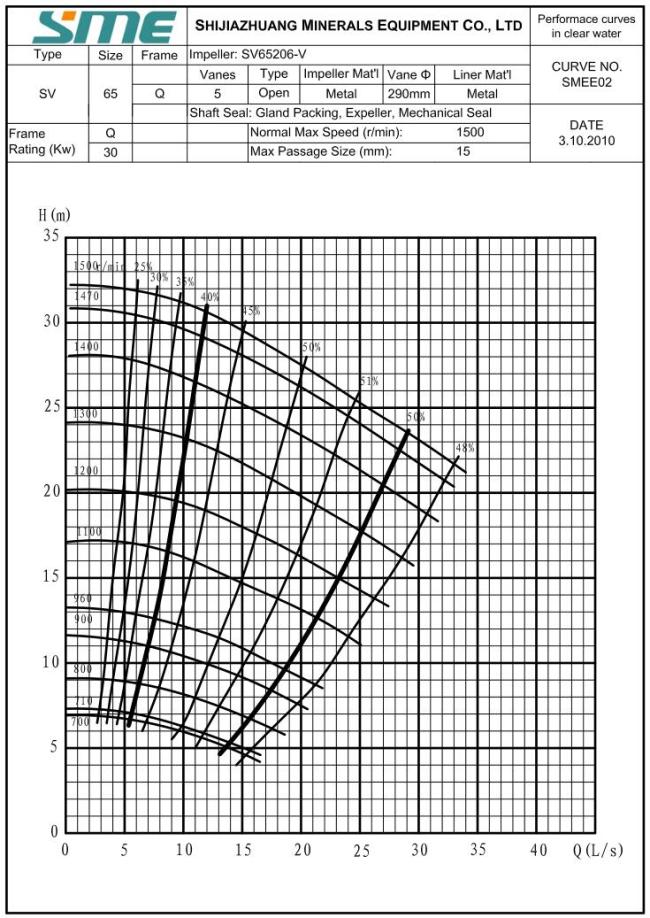

Performance Curve:
Projects with Vertical Slurry Pumps:
SME SPR Sump Pump Orders:
