SH 40B Heavy Duty Slurry Pump Horizontal Slurry Pumps For Alumina Refinery
SH / 40B Metal Slurry Pumps Wear Reduction For Alumina Refinery
Introduction:
The frame plates for type 2/1.5B- such as interchangeable, hard metal only. Bearing assembly
Use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. Bearing use grease lubrication. The shaft seal could use packing seal, centrifugal seal and mechanical seal. The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Specifications:
| Model | SH/40B |
| Oulet | 1.5-inch |
| Capacity | 32.4-72m3/h |
| TDH | 6-58m |
| Rated Motor Power | 15Kw |
| Speed | 1200-3200r/min |
| NPSH | 3.5-8m |
Construction of SH Slurry Pumps:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing

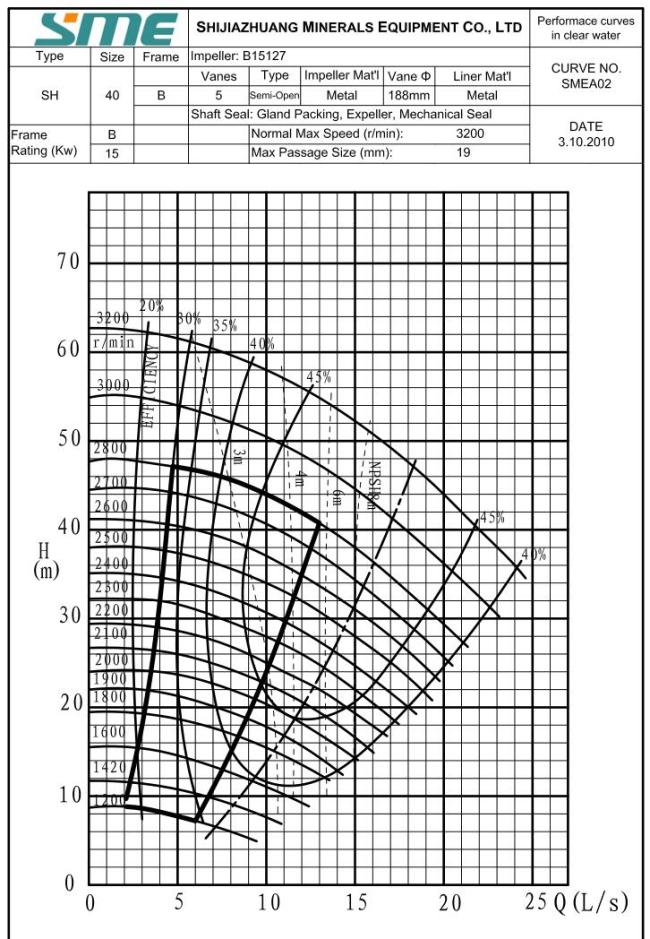

Performance Curve:
