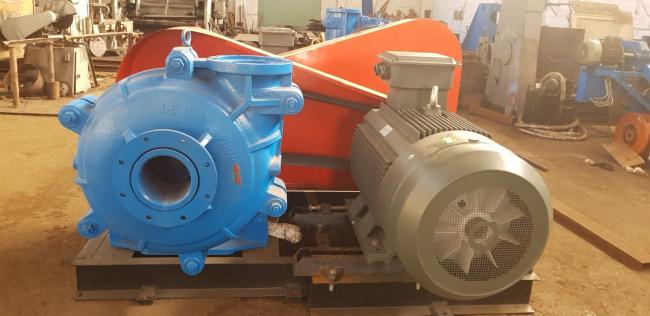

Heavy Duty Water Slurry Pump SH / 150E To Deal With Coarse Tailings

Horizontal Slurry Pumps SH / 150E To Deal With Coarse Tailings

Introduction:

8/6E- is heavy duty type centrifugal slurry pump, the capacity is 360-828m3/h with 10-61m head.

The seal type can be expeller ring seal, packing seal and mechanical seal:

1. Expeller drive seal: Use pressure seal produces by impeller and expeller in series, packing or lip sealing ring for shut down seal.

2. Packing seal: The routing sealing systems are suitable for various conditions and can be used in the corrosin or high temperature conditions such as polytetrafluoroethylene packing, graphite packing and etc. It also can be used in strong abrasive condition duty eith shaft ceramic sleeve of sprey weld.

3. Mechanical Seal: World-advanced sealing technique without sealing leakage, integrating construction installation & replacement, various construction suit for all kinds of conditions. High hardness creamic and alloy are adopted for material of friction parts. Design & macting of mechanical seal & sealing box is suitable for fluid state. It possesses high abrasive resistance & shakeproof to guarantee that sealing seffect can be satisfied by customers in various conditions.

Specifications:

Construction of SH Slurry Pumps:

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

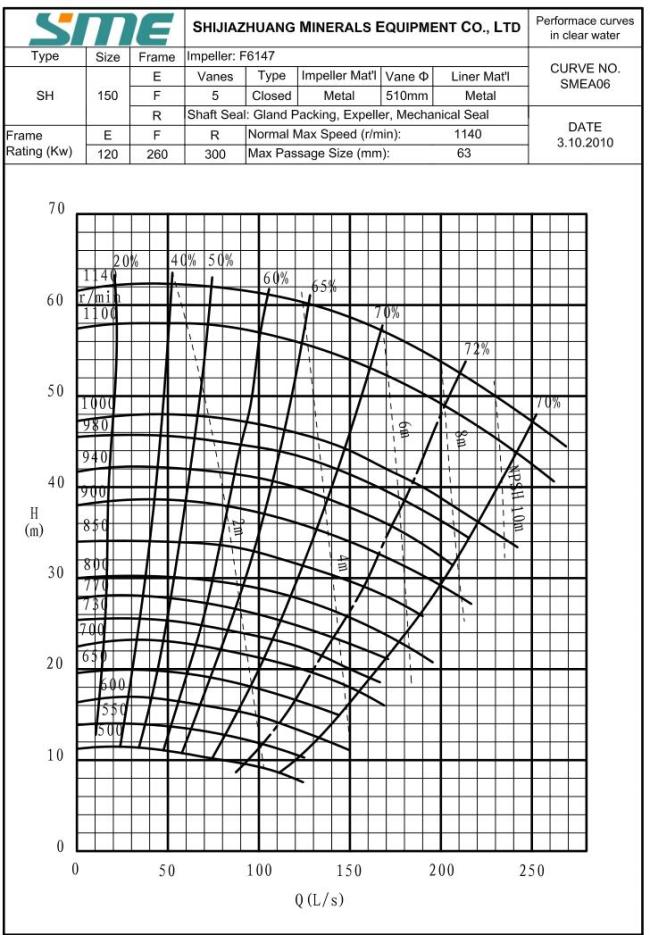

Performance Curve:
