Industrial Metal Heavy Duty Slurry Pump SH / 200ST Centrifugal Type
SH / 200ST Slurry Pump , Industrial Heavy Duty Used Metal Slurry Pumps
Introduction:
Key components design:
Impeller - designed for high slurry efficiency and hydraulic performance. Machined surface at the eye for wear ring adjustment and high expelling vanes.
Casing - designed for minimum slurry turbulence and even wear. Includes (14x12 and smaller) integral wear ring, carrier, and adjustment screws for on-line adjustment and elimination of suction side recirculation.
Wear Parts - designed hydraulically to wear evenly. Constructed of high chrome at 58-62 Rockwell hardness.
Specifications:
| Model | SH/200ST |
| Oulet | 8-inch |
| Capacity | 612-1368m3/h |
| TDH | 11-61m |
| Rated Motor Power | 560Kw |
| Speed | 400-850r/min |
| NPSH | 4-10m |
Construction of SH Slurry Pumps:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing

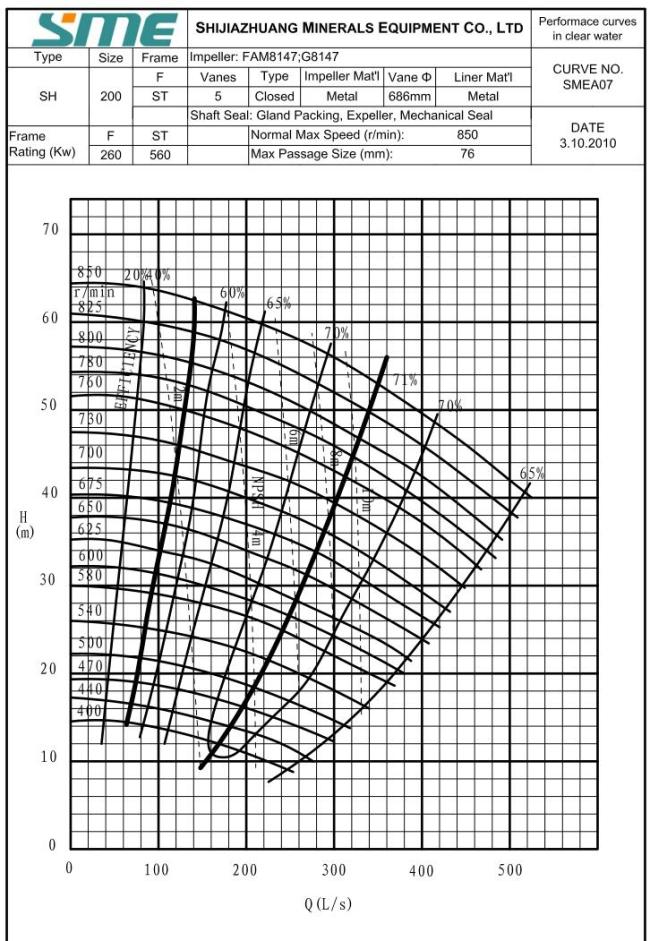

Performance Curve:
