Horizontal Slurry Pump For Corrosive Slurry Transfer / Mining Open Impeller Type
Horizontal Slurry Pump For Corrosive Slurry Transfer , Mining
Introduction:
3/2C-R rubber lined slurry pump is centrifugal horizontal slurry pump, it is designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.
Type R slurry pump adpot many kinds of sealing systems: expeller ring seal, gland packing seal, mechanical seal and all sorts of special combined seals:
1. Expeller drive seal: Use pressure seal produces by impeller and expeller in series, packing or lip sealing ring for shut down seal.
2. Packing seal: The routing sealing systems are suitable for various conditions and can be used in the corrosin or high temperature conditions such as polytetrafluoroethylene packing, graphite packing and etc. It also can be used in strong abrasive condition duty eith shaft ceramic sleeve of sprey weld.
3. Mechanical Seal: World-advanced sealing technique without sealing leakage, integrating construction installation & replacement, various construction suit for all kinds of conditions. High hardness creamic and alloy are adopted for material of friction parts. Design & macting of mechanical seal & sealing box is suitable for fluid state. It possesses high abrasive resistance & shakeproof to guarantee that sealing seffect can be satisfied by customers in various conditions.
Specifications:
| Model | SHR-50C |
| Outlet | 2-inch |
| Capacity | 36-75.6m3/h |
| TDH | 13-46m |
| Rated Motor Power | 30Kw |
| Speed | 1300-2300r/min |
| NPSH | 2-4m |
Construction of Rubber Slurry Pump:
Typical Applications:
Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Corrosive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal
Standard Material of Wet-end Parts: Natural Rubber
|
Natural Rubber |
Standard |
| Hardness(Shore A) | 52±3 |
| 300% Stretching Strength(MPa) | ≥4 |
| Tensile Strength(MPa) | ≥21 |
| Elongation at Break(%) | ≥500 |
| Tensile Set at Break(%) | ≤25 |
| Rubber to Metal Bonding Pull Strength(MPa) | ≥5 |
| Akron Abrasion cm3/1.61km | ≤0.08 |
| Acid & Alkali Resistant PH Value(Liquid) | 3-12≤65℃ |

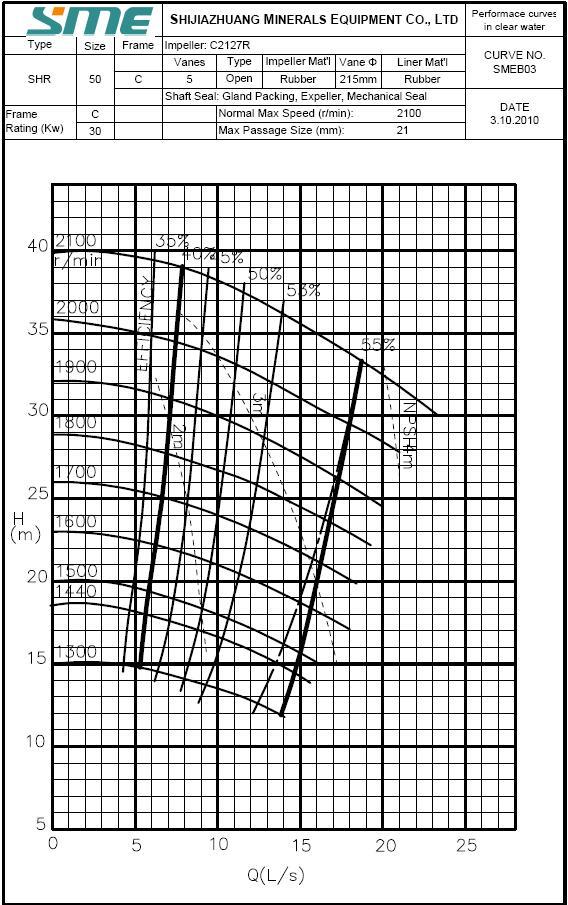

Performance Curve:
