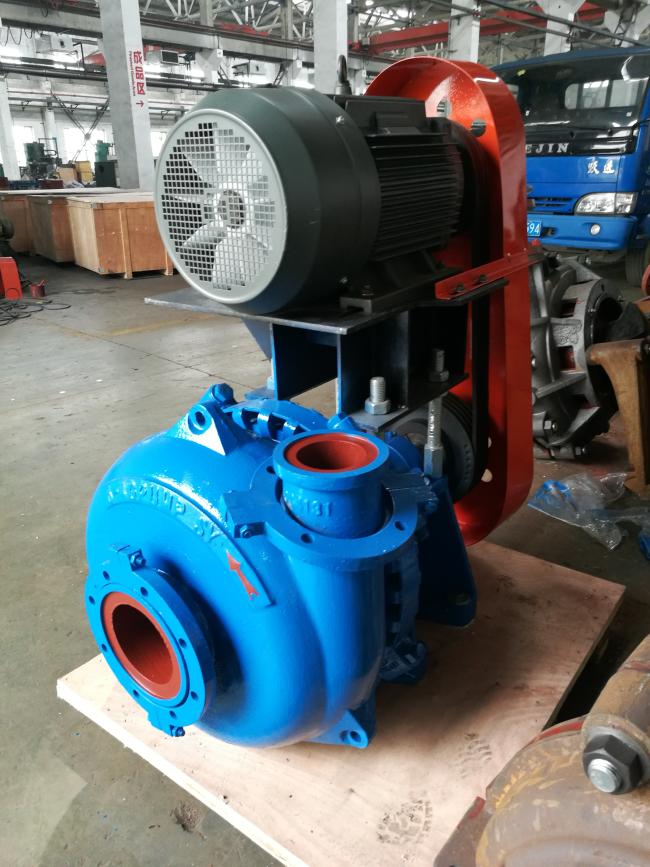

Middle Pressure Sand Gravel Pump High Chrome Dredging Submersible Sand Pump
Middle Pressure Gravel Pump , Submersible Sand Dredging Pumps
Introduction:
SG/100D is a 4-inch gravel pump, which can be driven by elec. motor or diesel engine. SG is the standard type with normal discharge head, and also, we have this type SHG-300G with a higher discharge head to meet the customer's different applications.
SG series Sand Gravel Pump is a single stage, single casing, centrifugal horizontal pump. Large flow path make pump allow large particle solids. Simple structure and high chrome alloy liner make the Sand Gravel pump long life and easy maintenance.
Specifications:
| Model | SG-100D |
| Outlet | 4-inch |
| Capacity | 36-252m3/h |
| TDH | 10-50m |
| Rated Motor Power | 60Kw |
| Speed | 600-1400r/min |
| NPSH | 2.5-3.5m |
Explosive View of SG Gravel Pumps:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Sand and Gravel
Sand Excavation
Hydraulic Mining
Cyclone Feeds
Slag Granulation
Tunnelling
Performance Curve:
