Introduction:
The shaft seal of SH/100E(6/4E-) could use packing seal, centrifugal seal and mechanical seal. The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Slurry pump 6/4E- is heavy duty slurry pumps for a range of mill duties, from dirty water to the most difficult water flushed crusher services.
Typical Applications:
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Specifications:
| Model | SH/100E |
| Oulet | 4-inch |
| Capacity | 162-360m3/h |
| TDH | 12-56m |
| Rated Motor Power | 120Kw |
| Speed | 800-1550r/min |
| NPSH | 5-8m |
| Type | Size | Frame | Impeller:E4147A05 | Shaft Seal Type | Frame Rating(kw) | Normal Max Speed(r/min) | Max Passage Size(mm) |
| SH | 100 | E | 5 Closed Type Metal Vans, Diameter:365mm | Gland Packing, Expeller, Mechanical Seal | 120 | 1600 | 44 |
Construction of SH Slurry Pumps:

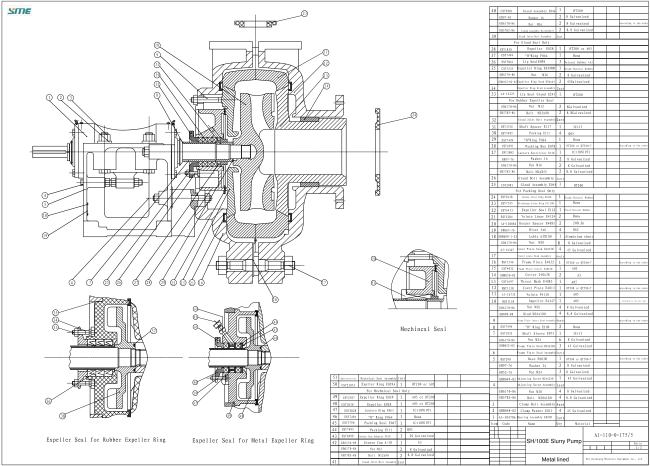

Sectional Drawing:
