Introduction:
1. Rubber lined slurry pumps are less used than metal slurry pumps in the heavy duty abrasion slurry applications. Rubber pumps are more used in find sand, copper preparation and other industries where the pH value of the slurry is between 2-4.
2. Phosphric acid slurry pump SHR/100D is identical to the standard World War-man model 6/4D-R. The material of wear parts is natural rubber-soft black rubber, to resist corrosion.
3. Rubber lined slurry pumps are used in below areas:
Mining and Mineral Processing
Power Generation and Steel Plants
Industrial Effluents and Liquors
Coal Preparation and other Acidic Applications
3. Specifications:
| Model | SHR-100D |
| Outlet | 4-inch |
| Capacity | 144-324m3/h |
| TDH | 12-45m |
| Rated Power | 60Kw |
| Speed | 800-1350r/min |
| NPSH | 3-5m |

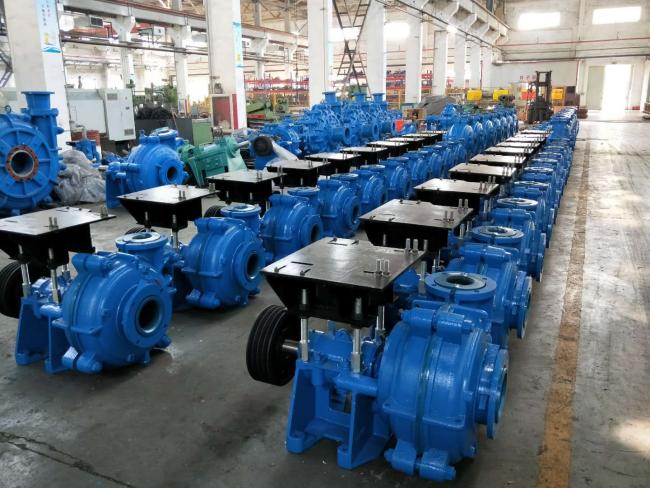

4. Photos shipped to Worldwide
5. SHR/100D: SHR --- SME Heavy Rubber Pump; 100 --- 100mm (4-inch), Outlet; D --- Frame Type, bearing a maximum of 60Kw motor.

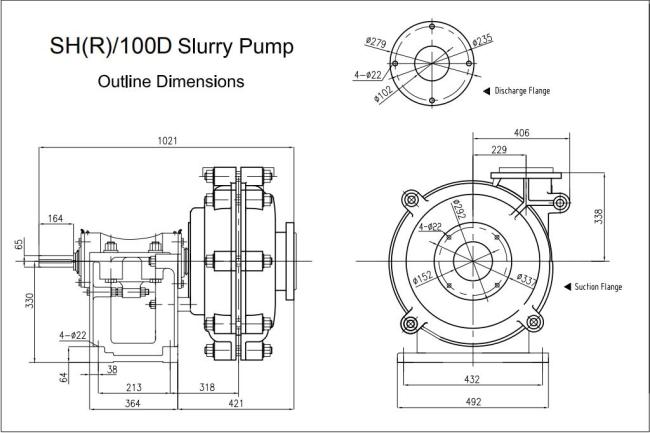

6. Outline Dimensional Drawing:
7. Specification Table:
| Pump Model |
S×D (inch) |
Allowable Max. Power (kw) |
Material | Clear Water Performance | |||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
|||||
| Impeller | m3/h | l/s | |||||||
| SHR/25B | 1.5×1 | 15 | Rubber () |
10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | |
| SHR/40B | 2×1.5 | 15 | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | |
| SHR/50C | 3×2 | 30 | 36-75.6 | 10-21 | 13-39 | 1300-2100 | 2-4 | ||
| SHR/75C | 4×3 | 30 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | |
| SHR/75D | 4×3 | 60 | |||||||
| SHR/100D | 6×4 | 60 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | |
| SHR/100E | 6×4 | 120 | |||||||
| SHR/150E | 8×6 | 120 | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | |
| SHR/150F | 8×6 | 260 | |||||||
| SHR/150R | 8×6 | 300 | |||||||
| SHR/200F | 10×8 | 260 | 540-1188 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | |
| SHR/200ST | 10×8 | 560 | 540-1188 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | |
| SHR/250F | 12×10 | 260 | 720-1620 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | |
| SHR/250ST | 12×10 | 560 | 720-1620 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | |
| SHR/300F | 14×12 | 260 | 1152-2520 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | |
| SHR/300ST | 14×12 | 560 | 1152-2520 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | |
Construction of Rubber Slurry Pump:
Typical Applications:
Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Corrosive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal
Standard Material of Wet-end Parts: Natural Rubber
Performance Curve:
