Heavy Duty Centrifugal Sand Slurry Pump With Small Flowrate But High Speed
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
7 Working Days
Brand:
CNSME
Product Description
Heavy Duty Centrifugal Sand Slurry Pump with Small Flowrate but High Speed
Introduction:
Slurry pumps are designed and engineered for the most rugged and demanding installaions. During years, our pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability and efficiency.
SH-50C (War-man 3/2C-) is a very popular model among smaller slurry pump selections. It is horizontal pumps which are used on surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.
Specifications:
| Type | Size | Frame | Impeller:C2147A05 | Shaft Seal Type | Frame Rating(kw) | Normal Max Speed(r/min) | Max Passage Size(mm) |
| SH | 50 | C | 5 Closed Type Metal Vans, Diameter:214mm | Gland Packing, Expeller, Mechanical Seal | 30 | 2700 | 25 |
| Slurry Pump SH Series Metal Slurry Pump Specifications | ||||||||||||
| Pump Model |
S×D (inch) |
Allowable Max. Power (kw) |
Material | Clear Water Performance | Impeller | Pricing | ||||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
No. of Vanes |
Vane Dia. (mm) |
Weight (kg) |
|||||
| Impeller | m3/h | l/s | ||||||||||
| SH/25B | 1.5×1 | 15 | Metal (A05) |
12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
| SH/40B | 2×1.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 | ||
| SH/50C | 3×2C | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 | ||
| SH/75C | 4×3 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 | ||
| SH/75D | 4×3 | 60 | 245 | 363 | ||||||||
| SH/100D | 6×4 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 | ||
| SH/100E | 6×4 | 120 | 365 | 728 | ||||||||
| SH/150E | 8×6 | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 | ||
| SH/150F | 8×6 | 260 | 510 | 1496 | ||||||||
| SH/150R | 8×6 | 300 | 510 | 1655 | ||||||||
| SH/200F | 10×8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 | ||
| SH/200ST | 10×8 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 | ||
| SH/250F | 12×10 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 | ||
| SH/250ST | 12×10 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 | ||
| SH/300ST | 14×12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 | ||
| SH/350TU | 16×14 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 |
10000 |
||

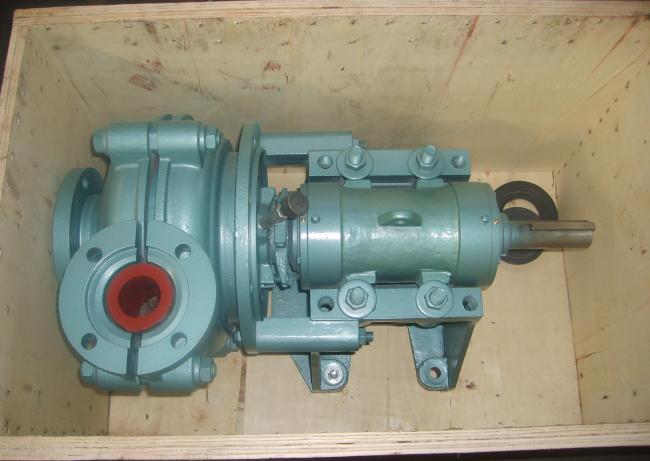

Slurry Pumps Packed in Wooden Packages:
