Medium Duty 120KW Horizontal Slurry Pump For Mining Industries Power Plants
SM/200E Blue Medium Duty Horizontal Slurry Pump for Mining Industries Power Plants
Introduction:
Slurry pumps are designed and engineered for the most rugged and demanding installations. For years, our slurry pumps have exceeded
operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.
SM series has better efficiency and high pressure than the SH series and SL series.
SM/200E (10/8E-M)
Slurry pump impeller in metal material. The high chrome slurry pump impeller hardness is Min HRC 52.
Characteristics/Structure:
1) This series of slurry pumps have replaceable wear-resistant metal liners. Its wet parts are with throatbush, impeller, volute liner and frame plate liner insert, which are all made of high Chrome alloy and natural rubber.
2) Cylindrical structure is used for its bearing assembly, which is easy for adjusting the space between impeller and front liner easily, being removed completely when being repaired. Grease lubricant is applied for bearing lubrication.
3) It has a packing seal, expeller seal, and mechanical seal usually.
4) The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Specifications:
|
Model |
SM/200E |
|
Outlet |
8-inch |
|
Capacity |
540-1440m3/h |
|
TDH |
14-60m |
|
Rated Motor Power |
120Kw |
|
Speed |
600-1000r/min |
|
Max. Eff. |
73% |
|
NPSH |
4-10m |
|
Type |
Size |
Frame |
Impeller: F8147 A05 |
Shaft Seal Type |
Frame Rating(KW) |
Normal Max Speed(r/min) |
Max. Passage Size(mm) |
|
SM |
200 |
E |
5 Closed Metal Vanes, Diameter:549mm |
Gland Packing, Expeller, Mechanical Seal |
120 |
1100 |
65 |
Typical Applications:
Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Chemical Industry
Other industries
Material: High Chrome Alloy A05
Material Chemical Requirements, Weight%
|
Description |
Material Name |
C |
Mn |
Si |
Ni |
Cr |
Mo |
Cu |
P |
V |
S |
Description |
Hardness |
|
A05 |
Ultrachrome |
2.92 |
0.98 |
0.54 |
0.8 |
27 |
≤0.8 |
... |
0.062 |
... |
0.051 |
27% Cr Erosion Resistant White Iron |
58-62HRC |

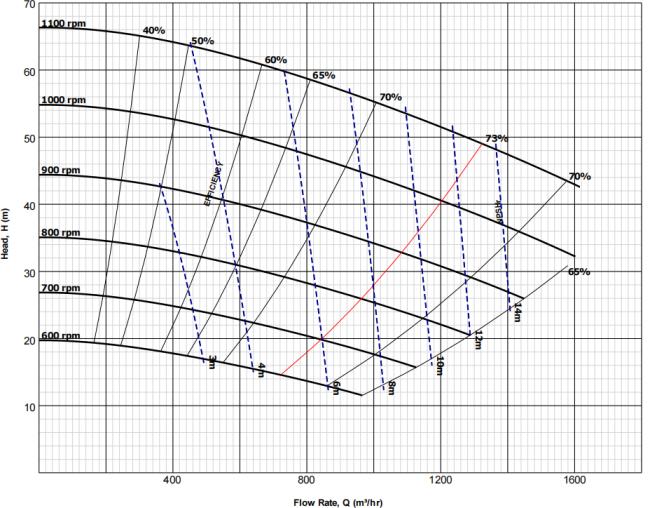

Performance Curve:

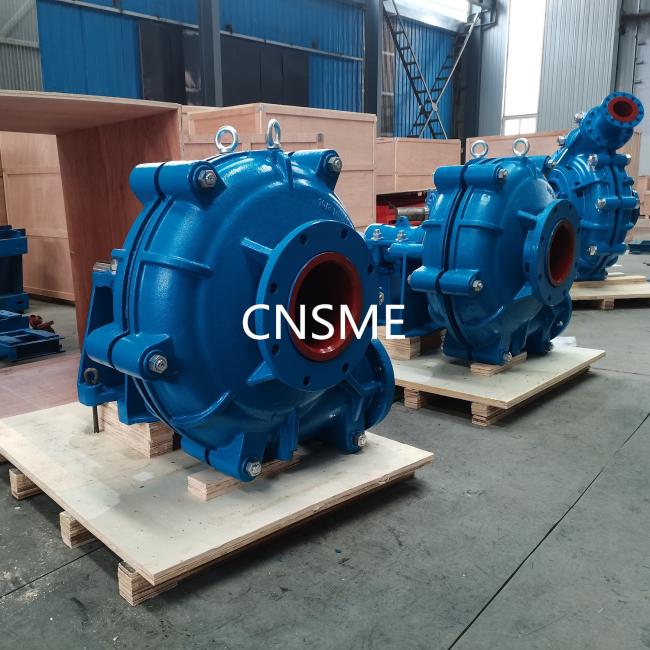

Woode Case Package:

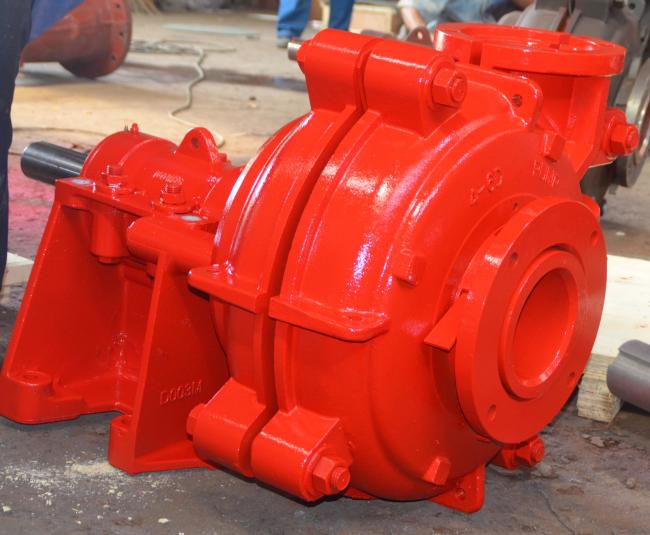

Other Color Products:
