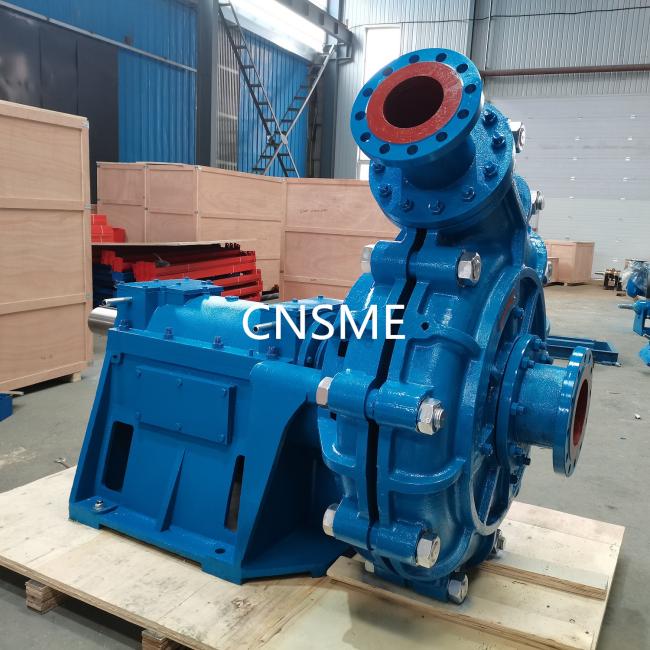

High Chrome Material 560kw Abrasive Slurry Pump For Thermal Power Plants / Tailings
150ZGB China Abrasive Slurry Pump High Chrome Material for Thermal Power Plants and Tailings
Introduction:
ZGB is our successful abrasive resistant slurry handling pump and combines an effective expeller seal with good hydraulic efficiency. From design to installation and beyond, SME engineers are available to give advice on your slurry pumping needs and problems. The ZGB range has been designed to offer a wide choice of pump sizes to suit more slurry pumping applications.
ZGB series slurry pump is a horizontal, single-stage, single-suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange ZGB and ZGBP type slurry pumps of the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopts open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.
Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.
Specifications:
| Model | 150ZGB (China Slurry Pump) |
| Capacity | 65-182.5m3/h |
| TDH | 35-90m |
| Max. Allowable Motor Power | 560Kw |
| Speed | 740r/min or 980r/min |
| Max. Efficiency | 78% |
| Lubrication | Oil |
Construction of ZGB Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
| Material Chemical Requirements, Weight % | ||||||||||||||||
| Designation | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness | |||
| A03 | Ni-Hard 1 | 3.0-3.6 | 0.3-0.7 | 0.3-0.5 | 3.3-4.8 | 1.5-2.6 | 0-0.4 | ... | ≤0.3 | ≤0.15 | ||||||
| A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.8 | 26~28 | ≤0.8 | ... | 0.062 | .. | 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC | |||
| A06 | NI-Hard 4 | 3.2 | 0.2 | 1.5 | 4 | 8 | 0.5 | ... | 0.15 | ... | 0.12 | Martensitic White Iron | 62-67HRC | |||
| A07 | 15/3 Chrome/Moly Iron | 2.8-3.2 | 0.5-1.2 | 0.8-1.0 | ... | 15-17 | 2.8-3.2 | 0.8-1.2 | ... | ... | ... | Chromium/Molybdenum | 58-62HRC | |||
| A33 | 1.55 | 1.2 | 1.29 | 1.89 | 36.7 | 1.92 | 1.31 | ... | ... | ... | Corrosion-resistant Chrome | |||||
| A49 | Ultrachrome | 1.57 | 0.71 | 1.36 | 2.01 | 28 | 1.96 | 1.32 | 0.038 | ... | 0.027 | 28% Cr, Low C, White Iron | ||||
| A61 | Hyperchrome | 4.4-4.6 | 2.0-2.5 | 0.3-0.8 | ... | 30-32 | 2.5-3.0 | ... | ... | 0.2-0.3 | ... | Hypereutectic white iron | ||||
| R55 | Standard Natural Rubber | Natural Rubber for erosive applications | 65 Shore | |||||||||||||
| U01 | Wear Resistant Polyurethane | Polyurethane Elastomer | 78 Shore | |||||||||||||
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

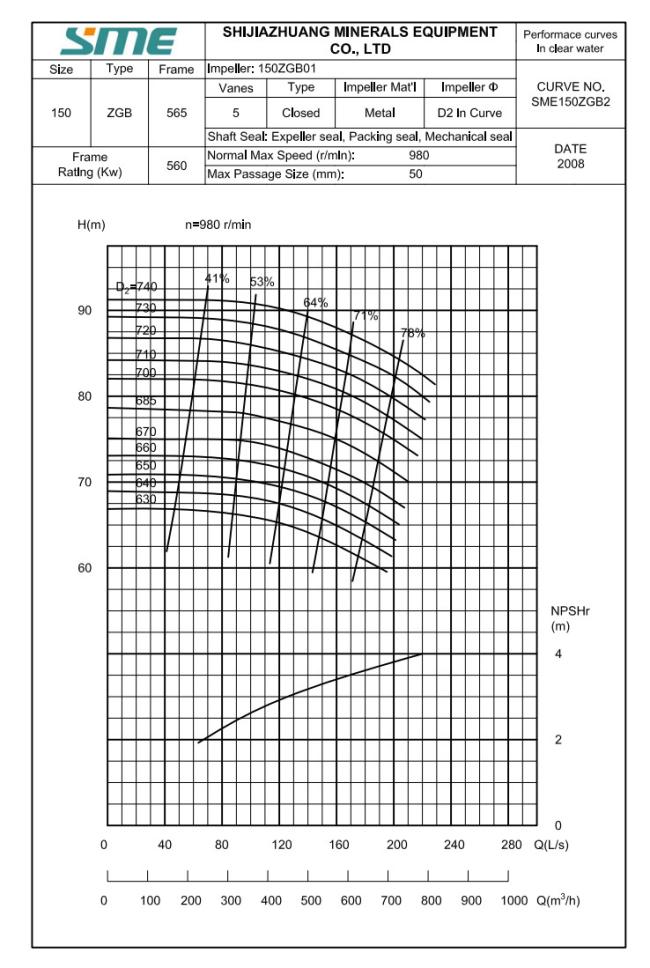

Performance Curve:
Wooden Case Package:
