Mining Duty 8 Bar High Pressure Slurry Pump 6 Vane Enclosed Impeller RAL 5015
Mining Duty 8bar High Pressure Slurry Pump with 6 - Vane Enclosed Impeller RAL5015
Introduction:
Mining duty Slurry pumps are designed and engineered for the most rugged and demanding installations. For years, our slurry pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.
SH/150F (8/6F-) is a very popular model among horizontal slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle very abrasive and erosive slurries. Especially for the below displayed pump, which is installed with 6-vane closed type impeller, and which has ensured that the pump can achieve a relatively high pressure, max. 8.5bar.
1) Simple structure in liner type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3) High-pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution.
5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.
Specifications:
| Model | SH/150F |
| Outlet | 6-inch |
| Capacity | 360-900m3/h |
| TDH | 10-85m |
| Rated Motor Power | 260Kw |
| Speed | 500-1300r/min |
| Max. Eff. | 75% |
| NPSH | 2-10m |
| Type | Size | Frame | Impeller: F6058A05 | Shaft Seal Type | Frame Rating(KW) | Normal Max Speed(r/min) | Max. Passage Size(mm) |
| SH | 150 | F | 5 Closed Metal Vanes, Diameter:510mm | Gland Packing, Expeller, Mechanical Seal | 260 | 1300 | 63 |
Typical Applications:
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Sugar Cane
Material: High Chrome Alloy A05
Material Chemical Requirements, Weight%
| Description | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness |
| A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.8 | 27 | ≤0.8 | ... | 0.062 | ... | 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC |
Construction of SH Slurry Pumps:
Performance Curve:
| Slurry Pump SH Series Metal Slurry Pump Specifications | ||||||||||||
| Pump Model |
S×D (inch) |
Allowable Max. Power (kW) |
Material | ClearWater Performance | Impeller | Pricing | ||||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
No. of Vanes |
Vane Dia. (mm) |
Weight (kg) |
|||||
| Impeller | m3/h | l/s | ||||||||||
| SH/25B | 1.5×1 | 15 | Metal (A05) |
12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
| SH/40B | 2×1.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 | ||
| SH/50C | 3×2 | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 | ||
| SH/75C | 4×3 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 | ||
| SH/75D | 4×3 | 60 | 245 | 363 | ||||||||
| SH/100D | 6×4 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 | ||
| SH/100E | 6×4 | 120 | 365 | 728 | ||||||||
| SH/150E | 8×6 | 120 | 360-900 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 | ||
| SH/150F | 8×6 | 260 | 510 | 1496 | ||||||||
| SH/150R | 8×6 | 300 | 510 | 1655 | ||||||||
| SH/200F | 10×8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 | ||
| SH/200ST | 10×8 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 | ||
| SH/250F | 12×10 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 | ||
| SH/250ST | 12×10 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 | ||
| SH/300ST | 14×12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 | ||
| SH/350TU | 16×14 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 |
10000 |
||

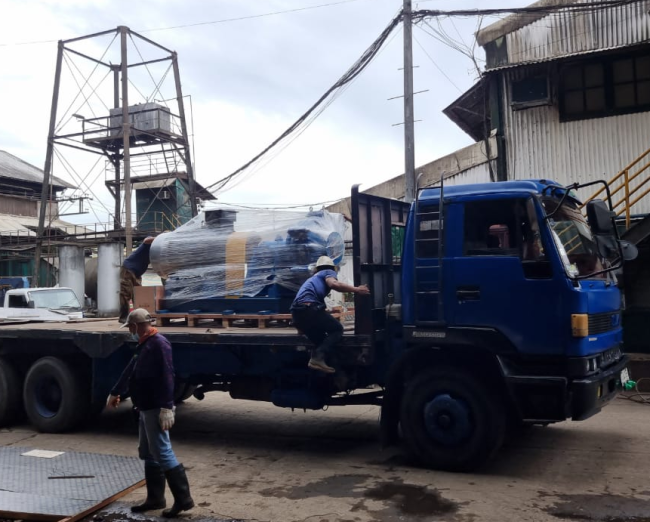

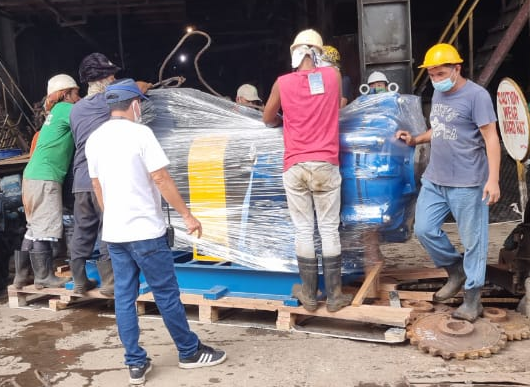

Slurry Pumps Arrived at Site:
