Centrifugal Slurry Pump 12 / 10 ST - 10 Inch With Rubber Liner And Metal Impeller

Name: Centrifugal Slurry Pump 12 / 10 ST - 10 Inch With Rubber Liner And Metal Impeller
Brand: Shijiazhuang Minerals Equipment Co. Ltd

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 7 Working Days

Brand: CNSME

Product Description

Centrifugal Slurry Pump 12 / 10 ST - 10 Inch With Rubber Liner And Metal Impeller

1.Product Introduction:

SH/250ST (12/10ST- )Slurry Pump is horizontal centrifugal slurry pumps for handling of highly abrasive, high-density slurries and support multistage serial installation. They feature frame and cover plates made out of grey cast iron or ductile cast iron (based on the pressure requirements) with replaceable wear-resistant rubber liners, rubber impellers.

2. Performance Parameter:

Specifications
Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-A H	15	M	M	12.6~28.8	6~68	1200~3800	40	2~4	5
1.5/1B-A H	15	RU	RU	10.8~25.2	7~52	1400~3400	35	2~4	3
2/1.5B-A H	15	M	M	32.4~72	6~58	1200~3200	45	3.5~8	5
2/1.5B-A H	15	RU	RU	25.2~54	5.5~41	1000~2600	50	2.5~5	5
3/2C-A H	30	M	M	39.6~86.4	12~64	1300~2700	55	4~6	5
3/2C-A H	30	RU	RU	36~75.6	13~39	1300~2100	60	2~4	5
4/3C-A H	30	M	M	86.4~198	9~52	1000~2200	71	4~6	5
4/3C-A H	30	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
4/3D-A H	60	M	M	97.2~198	9~53	1000~2200	71	4~6	5
4/3D-A H	60	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
6/4D-A H	60	M	M	162~360	12~56	800~1550	65	5~8	5
6/4D-A H	60	RU	RU	144~324	12~45	800~1350	65	3~5	5
6/4E-A H	120	M	M	162~360	12~56	800~1550	65	5~8	5
6/4E-A H	120	RU	RU	144~324	12~45	800~1350	65	3~5	5
8/6E-A H	120	M	M	360~828	10~61	500~1140	72	2~9	5
8/6E-A H	120	RU	RU	324~720	7~49	400~1000	65	5~10	5
8/6R-A H	300	M	M	360~828	10~61	500~1140	72	2~9	5
8/6R-A H	300	RU	RU	324~720	7~49	400~1000	65	5~10	5
10/8-A H	560	M	M	612~1368	11~61	400~850	71	4~10	5
10/8-A H	560	RU	RU	540~1188	12~50	400~750	75	4~12	5
10/8E-M	120	M	M	666~1440	14~60	600~1100	73	4~10	5
10/8E-M	120	RU	RU	540~1188	10~42	500~900	79	5~9	5
12/10-A H (SH/250ST)	560	M	M	936~1980	7~68	300~800	82	6	5
12/10-A H (SH/250ST)	560	RU	RU	720~1620	7~45	300~650	80	2.5~7.5	5
14/12-A H	560	M	M	1260~2772	13~63	300~600	77	3~10	5
14/12-A H	560	RU	RU	1152~2520	13~44	300~500	79	3~8	5
16/14-A H	560	M	M	1368~3060	11~63	250~550	79	4~10	5
16/14-A H	1200	M	M	1368~3060	11~63	250~550	79	4~10	5
18/16-A H	1200	M	M	2160~5040	8~66	200~500	80	4.5~9	5
20/18-A H	1200	M	M	2520~5400	13~57	200~400	85	5~10	5

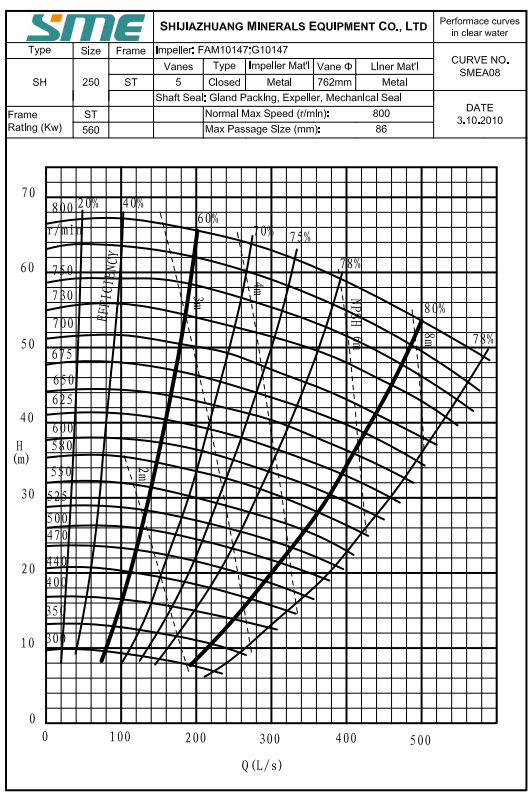

3.Performance Curve of SH/250ST(12/10ST-)

4. SH250ST (12/10ST-) Outline Dimension Drawing

5.On-Site Application:

They are commonly used in metallurgical, mining, coal, power, construction material and similar industries.
