Rubber Lined Metal Lined Heavy Duty Slurry Pumps Driven By Electric Motors
Bulk Shipment of Rubber Lined Slurry Pumps and Metal Lined Slurry Pumps Driven by Electric Motor
Introduction:
Slurry pumps are designed and engineered for the most rugged and demanding installations. For years, our slurry pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.
6/4D-R is a very popular model among horizontal slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.
1) Simple structure in liner type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3) High-pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution.
5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.
Specifications:
| Model | 6/4D-R |
| Outlet | 4-inch |
| Capacity | 100~300m3/h |
| TDH | 10~40m |
| Rated Motor Power | 60Kw |
| Speed | 800~1350/min |
| Max. Eff. | 72% |
| NPSH | 2~6m |
| Type | Size | Frame | Impeller:D3147A05 | Shaft Seal Type | Frame Rating(KW) | Normal Max Speed(r/min) | Max. Passage Size(mm) |
| SHR | 75 | D | 5 Closed Metal Vanes, Diameter: 365mm | Gland Packing, Expeller, Mechanical Seal | 60 | 1350 | 33 |
Typical Applications:
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing

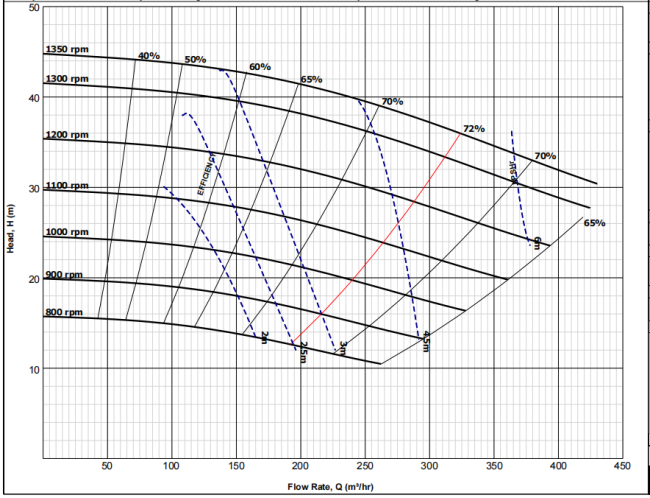

Performance Curve:
Similar Products(Replacement of Warman Centrifugal Slurry Pumps):
