2 Inch High Chrome Single Stage Centrifugal Pump 11kw Motor Cvz Drive
2-inch High Chrome Slurry Pump SH/50C Single Stage Centrifugal Pump with 11kW Motor CVz Drive
Introduction:
CNSME pump is one famous Chinese slurry pump supplier worldwide.
Our factory has stock for all popular pumps and parts, therefore, we can make fast delivery with high quality and best service.
For SH/50C slurry pump, it's all hard metal lined slurry pump. The A05 wear parts include volute liner, impeller, and frame place liner insert.
The seal type includes expeller ring, gland packing, and mechanical seal. You can select seal type based on actual mine site condition.
| Material Chemical Requirements, Weight % | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness | |||
| A03 | Ni-Hard 1 | 3.0-3.6 | 0.3-0.7 | 0.3-0.5 | 3.3-4.8 | 1.5-2.6 | 0-0.4 | ... | ≤0.3 | ≤0.15 | Martensitic White Iron | |||||
| A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.3-0.5 | 26~28 | ≤0.8 | ... | 0.062 | .. | 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC | |||
| A06 | NI-Hard 4 | 3.2 | 0.2 | 1.5 | 4 | 8 | 0.5 | ... | 0.15 | ... | 0.12 | Martensitic White Iron | 62-67HRC | |||
| A07 | 15/3 Chrome/Moly Iron | 2.8-3.2 | 0.5-1.2 | 0.8-1.0 | ... | 15-17 | 2.8-3.2 | 0.8-1.2 | ... | ... | ... | Chromium/Molybdenum | 58-62HRC | |||
| A33 | 1.55 | 1.2 | 1.29 | 1.89 | 36.7 | 1.92 | 1.31 | ... | ... | ... | Corrosion-resistant Chrome | |||||
| A49 | Ultrachrome | 1.57 | 0.71 | 1.36 | 2.01 | 28 | 1.96 | 1.32 | 0.038 | ... | 0.027 | 28% Cr, Low C, White Iron | ||||
| A51 | 1.8-1.9 | 1.0-1.5 | 1.5-1.7 | 4.4-4.6 | 35-36 | 1.8-2.0 | 1.5-1.7 | 0.1 | ... | 0.1 | 35% Cr, High Ni, White Iron | 47-51HRC | ||||
| A61 | Hyperchrome | 4.4-4.6 | 2.0-2.5 | 0.3-0.8 | ... | 30-32 | 2.5-3.0 | ... | ... | 0.2-0.3 | ... | Hypereutectic white iron | ||||
| R55 | Standard Natural Rubber | Natural Rubber for erosive applications | 65 Shore | |||||||||||||
| U01 | Wear Resistant Polyurethane | Polyurethane Elastomer | 78 Shore | |||||||||||||

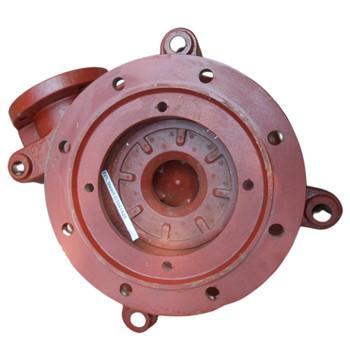

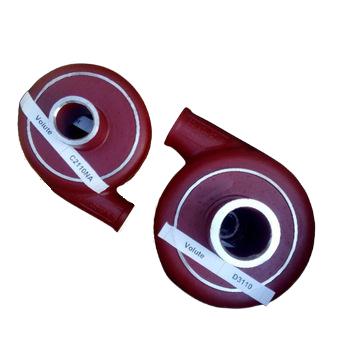

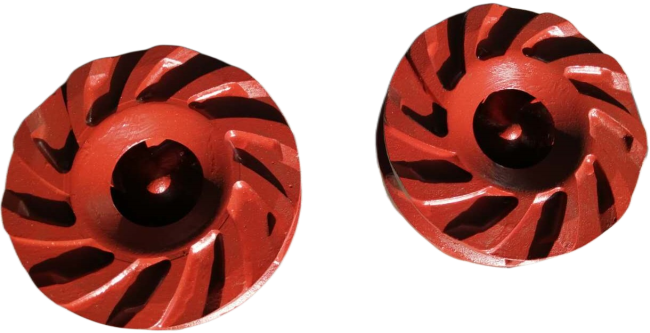

Main Wear Parts:
Typical Applications:
Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Corrosive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal
Performance Curve:
Different Drive Types:
