Zj Series Cnsme Industrial Sump Pump For Slurry
The slurry pump is a type of centrifugal pump, designed for pumping liquid containing solid particles in mining, metallurgy, coal washing , sewage water treatment, power plant, dredging and chemical and petroleum industries, etc

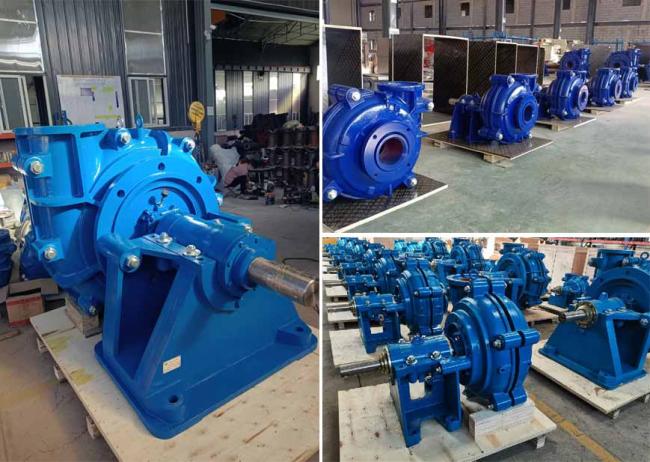

ZJ series slurry pump is a type of single-stage, single-suction, horizontal, cantilevered, centrifugal slurry pump. The ZJ series pumps are used internationally advanced solid-liquid two-phase flow theory and designed using the Minimum-Wear principle.
ZJ series pumps are suitable for handling abrasive and corrosive solids-bearing slurry with maximum concentrations of wt 45% (ash) and wt 60% (ore). We have all kinds of ZJ series slurry pumps, all of which can be made of direct driven (DC), direct driven via hydraulic coupling(HC), belt driven, and frequency control and they can be operated in tandem and parallel positions according to the requirements of the customer.
Features:
◆ Simple configuration and easy operation.
◆ Equip in-line filter could keep large impurities out of equipment and prevent damaging the vacuum pump.
◆ The standard model of plants is closed type so that using outside easily and have the nice appearance.
◆ Cased in hard-alloy which is a high anti-wear and high anti-corrosive impact resistant material. Longer service life.
◆ Lower noise and vibration.
Performance Data:
| Model | Capacity (m3/h) | Head(m) | Speed(r/min) | Power(kw) |
| 40ZJ-I-A17 | 9 | 44.6 | 2900 | 5.5 |
| 18 | 42.7 | 7.5 | ||
| 23 | 39.3 | 7.5 | ||
| 50ZJ-I-A33 | 26 | 42.5 | 1480 | 15 |
| 40 | 410.0 | 18.5 | ||
| 54 | 34.5 | 18.5 | ||
| 50ZJ-I-A46 | 48 | 85.8 | 1480 | 45 |
| 77 | 82.3 | 55 | ||
| 94 | 79.9 | 55 | ||
| 50ZJ-I-A50 | 57 | 110.7 | 1480 | 75 |
| 91 | 105.5 | 75 | ||
| 111 | 99.8 | 90 | ||
| 65ZJ-I-A27 | 42 | 28.2 | 1460 | 11 |
| 56 | 27.5 | 11 | ||
| 71 | 25.9 | 11 | ||
| 65ZJ-I-A30 | 47 | 34.8 | 1460 | 11 |
| 62 | 33.9 | 15 | ||
| 79 | 32.0 | 15 | ||
| 80ZJ-I-A33 | 90 | 43.2 | 1780 | 30 |
| 128 | 40.3 | 30 | ||
| 174 | 35.9 | 37 | ||
| 80ZJ-I-A36 | 98 | 51.4 | 1480 | 30 |
| 140 | 48.0 | 37 | ||
| 190 | 42.7 | 45 | ||
| 80ZJ-I-A39 | 121 | 60.7 | 1480 | 45 |
| 158 | 57.9 | 55 | ||
| 189 | 55.4 | 55 | ||
| 100ZJ-I-A33 | 119 | 41.6 | 1480 | 30 |
| 202 | 37.8 | 37 | ||
| 205 | 36.5 | 45 | ||
| 100ZJ-I-A36 | 130 | 18.2 | 1480 | 37 |
| 220 | 16.6 | 55 | ||
| 245 | 16.0 | 55 | ||
| .......... |

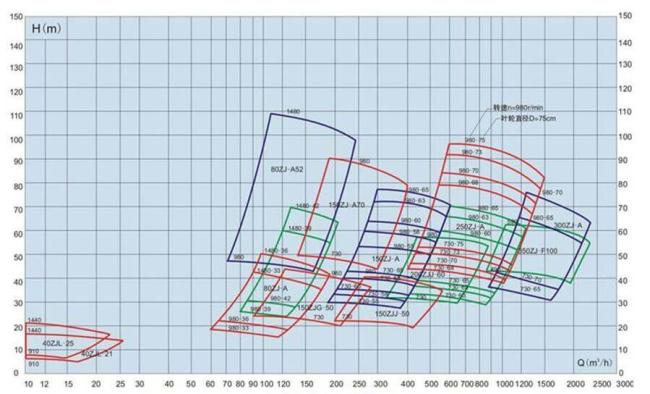

ZJ Series pump selection chart:
Application about ZJ Slurry Pump:
- Concentrate and tailing processing in concentration plant
- Ash and slag removal in power plant
- Coal slurry delivery and heavy media coal preparation
- Transferring slurry in mining operations
- Heavy media coal preparation
- Main auxiliary products in thermal power unit
