6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery
6 / 4E - 4 Inch Heavy Duty Centrifugal Slurry Pumps With A05 A49 High Abrasion Resistant Liners For Coal Washery

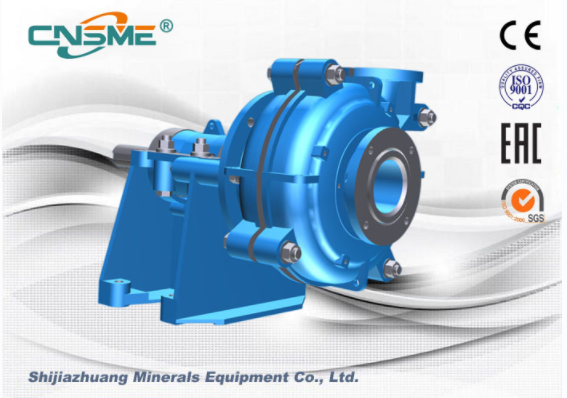

1.Discription of CNSME® SH/100E (6/4E-) Slurry Pump:
CNSME® SH/100E (6/4E-) centrifugal Slurry Pump is designed for heavy output, abrasive and corrosive, rolling mill discharge and efficient processes.
Our pump is used in hard rock, dredging, pulp and paper, as well as industrial business around the world.
We have exported the pumps to more than 20 countries to the world.Overseas service is available for customers.
We will use our quality and service to attract you and win you-an honorable friend and partner.
Features of CNSME® SH/100E (6/4E-):
1.Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.
2.Interchangeable anti-abrasive wet parts made of high-chrome alloys.
3.The discharge branch can be oriented to any eight positions at the interval of 45 degrees.
4. Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.
5.The shaft seal uses the packing seal, expeller seal and mechanical seal.
2.Data Sheet of CNSME® SH/100E (6/4E-) Slurry Pump::
| Slurry Pump SH Series Metal Slurry Pump Specifications | ||||||||||||
| Pump Model |
S×D (inch) |
Allowable Max. Power (kw) |
Material | Clear Water Performance | Impeller | Pricing | ||||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
No. of Vanes |
Vane Dia. (mm) |
Weight (kg) |
|||||
| Impeller | m3/h | l/s | ||||||||||
| SH/25B(R) | 1.5×1 | 15 | Metal (A05) |
12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
| SH/40B(R) | 2×1.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 | ||
| SH/50C(R) | 3×2 | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 | ||
| SH/75C(R) | 4×3 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 | ||
| SH/75D(R) | 4×3 | 60 | 245 | 363 | ||||||||
| SH/100D(R) | 6×4 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 | ||
| SH/100E(R) | 6×4 | 120 | 365 | 728 | ||||||||
| SH/150E(R) | 8×6 | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 | ||
| SH/150F(R) | 8×6 | 260 | 510 | 1496 | ||||||||
| SH/150R(R) | 8×6 | 300 | 510 | 1655 | ||||||||
| SH/200F(R) | 10×8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 | ||
| SH/200ST(R) | 10×8 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 | ||
| SH/250F(R) | 12×10 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 | ||
| SH/250ST(R) | 12×10 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 | ||
| SH/300ST(R) | 14×12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 | ||
| SH/350TU(R) | 16×14 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 |
1067 |
10000 |
||
3.Performance Curve of CNSME® SH/100E (6/4E-) Slurry Pump:
4.Dimensional Drawing of CNSME® SH/100E (6/4E-) Slurry Pump:
5. CNSME® Slurry Pump On-Site Applications :
CNSME® Slurry pumps are widely popular pumps that are used for handling robust and difficult tasks as they have sturdy construction. Slurry Pumps can be used in the following industries: Pumps for grinding circuits, Tailings transfer, Cyclone feed, Pressure filter feed, Wash water (sand and gravel), Tunnel dewatering, FGD reactor feed (lime), Fly ing, Waste and Recycling, Pulp & Paper, etc.
