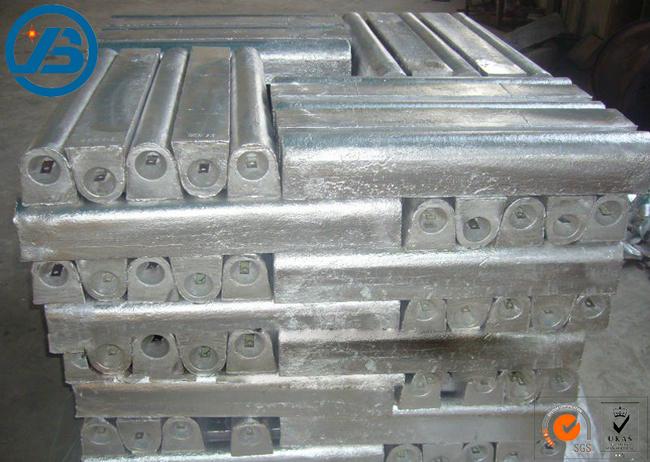

Extruded Magnesium Alloy Anodes D Type For Water Heater Boiler And Tank
Magnesium (Mg) alloy anodes have greater driving potential than zinc (Zn) or aluminium (Al). Manufacturer of Metal Anodes - Magnesium Alloy Anode, Aluminum Anode, Magnesium Anode offered by Solar Energy Systems.
- Avoid collision with the steel structure
- The anode must be placed in the fill bag and buried in low-lying and moist places when used in soil
- After the anode is put into the ground bed, the fill bag must be soaked before back fill soil
- Small proportion and high chemical activity
- Negative electric potential and large driving potential
- Large theoretical capacitance and low polarizability
- Particularly suitable for high electrical resistivity media
- For resistivity larger than 100Ω•m, please choose the ribbon magnesium anode
| Weight, kg | A, mm | B, mm | C, mm | R, mm | H, mm | I, mm | J, mm | K, mm | L, mm |
|---|---|---|---|---|---|---|---|---|---|
| 2.3 | 70 | 48 | 22 | 29 | 76 | 25 | 19 | 254 | 305 |
| 4.1 | 70 | 48 | 22 | 29 | 76 | 25 | 19 | 458 | 549 |
| 7.7 | 89 | 48 | 22 | 38 | 95 | 38 | 29 | 546 | 641 |
| 10.0 | 89 | 48 | 22 | 38 | 95 | 38 | 29 | 546 | 832 |
| 14.5 | 140 | 48 | 22 | 62 | 146 | 38 | 29 | 419 | 505 |
| 21.8 | 140 | 48 | 22 | 62 | 146 | 38 | 29 | 546 | 765 |
| Type | Alloy Element | Impurity Elements(Max) | ||||||
|---|---|---|---|---|---|---|---|---|
| Fe | Cu | Ni | Si | Ca | ||||
| MGAZ63B | Zn: 5.3-6.7, Mn: 2.5-3.5, Al: 0.15-0.60, Mg: Balance | 0.003 | 0.01 | 0.001 | 0.08 | ---- | ||
| MGAZ31B | Zn: 2.5-3.5, Mn: 0.60-1.4, Al: 0.20-1.0, Mg: Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.04 | ||
| MGM1C | Zn: ≤0.01, Mg: Balance | 0.01 | 0.01 | 0.001 | 0.05 | ---- | ||
| MG | Zn: ≤0.02, Mn: ≤0.03, Al: ≤0.01, Mg: ≥99.9% | 0.005 | 0.004 | 0.001 | 0.01 | ---- | ||
| Type | Open circuit potential (-V,Cu/CuSO4) | Closed circuit potential (-V,Cu/CuSO4) | Actual capacitance (A*h/kg) | Current efficiency (%) |
|---|---|---|---|---|
| MGAZ63B | 1.57-1.67 | 1.52-1.57 | ≥1210 | ≥55 |
| MGAZ31B | 1.57-1.67 | 1.47-1.57 | ≥1210 | ≥55 |
| MGM1C | 1.77-1.82 | 1.64-1.69 | ≥1100 | ≥50 |
We have advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.

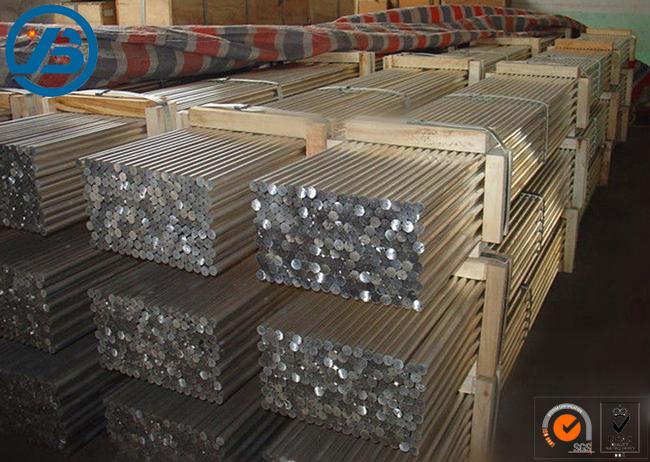

Magnesium alloy casting production can be customized as per your requirements. The technical process is excellent, extrusion production required for various bars, no need to purchase from abroad. Extrusion molding products are easy to mold, have low energy consumption, and save production costs.
Our team includes magnesium smelting technology personnel with more than 15 years of experience. From the selection of primary materials to smelting processing, we have extensive experience and mature management techniques. We have technical research and development capabilities in magnesium ingots and magnesium alloy extrusion products, positioning us as leaders among magnesium alloy production enterprises.
- Small order quantity available
- Professional engineering team and sales team
- Payment: T/T & Western Union
- OEM/ODM Support
- Free samples provided
- Competitive price and high quality
We have attained ISO9001 and ISO14001 certificates, standardizing and improving the enterprise quality management system.
A: We are direct manufacturer located in Guangdong province, and have our own equipment!
A: Yes, the products on the website are only the common types or previous types. We can supply new products according to your requirements or drawings.
A: Do not worry! We can supply technical guidance together with products.
A: Several samples are freely offered for building long-term business relationships and letting our customers verify the quality of our products.
A: Our factory passed CE, ISO, ROHS, UL certification.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
