4mm Extruded Strongest Magnesium Alloy For Carving / Aerospace / Concrete
The surface hardness of the magnesium plates is very close to the cooper.
The magnesium plate after rolling with 3000 tons cold rolling mill and also 2500tons hot rolling mill, then do the tempering treatment, our plates with uniform thickness, the tolerance of thickness is near zero, the plates is no anisotropy, eliminate the internal stress of the plates.
- Magnesium alloy thick plate are used to make satellites, lunar landing aircraft bases ,exterior panel of missile and rocket and the empennage of missile and plane.
- Magnesium alloy middle board are used to make the auxiliary tank ,side board and other structure of battleplane.
- The shell of 3C product , computer ,mobile hard disk ,CD, camea,acoustics,cell phone.
Specifications:
| Length*Width(mm) | Thickness(mm) | ||||||||||
| 1000*580 | 0.3 | 0.5 | 0.7 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 |
| 914*610 | 0.3 | 0.5 | 0.7 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 |
| Packaging shipping: Packed in carton, and the in wood case or on pallet. |
|||||||||||
Sheet Size Range: Thickness from 0.3 mm to 300mm
Width: 600 mm max.
Length: 2500mm max.
Packed in carton, and the in wood case or on pallet.
| Model | Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Other | |
| Single | Total | |||||||||||||
| AZ31B | Bal. | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | - | - | ≦0.08 | ≦0.003 | ≦0.04 | ≦0.01 | ≦0.001 | - | ≦0.05 | ≦0.30 |
| AZ91D | Bal. | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | - | - | ≦0.08 | ≦0.004 | - | ≦0.025 | ≦0.001 | 0.0005-0.003 | ≦0.01 | - |
| AZ61 | Bal. | 5.5-7.0 | 0.5-1.5 | 0.15-0.50 | - | - | ≦0.10 | ≦0.05 | - | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| AZ80 | Bal. | 7.8-9.2 | 0.2-0.8 | 0.12-0.50 | - | - | ≦0.10 | ≦0.005 | - | ≦0.05 | ≦0.005 | - | - | ≦0.30 |
| ZK61M | Bal. | ≦0.05 | 5.0-6.0 | ≦0.10 | - | 0.3-0.9 | ≦0.05 | ≦0.05 | - | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| ME20M | Bal. | ≦0.20 | ≦0.30 | 1.3-2.2 | 0.15-0.35 | - | ≦0.10 | ≦0.05 | - | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.30 |

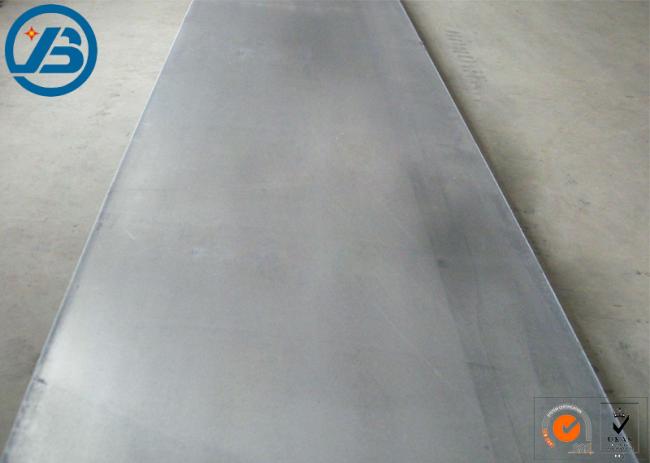

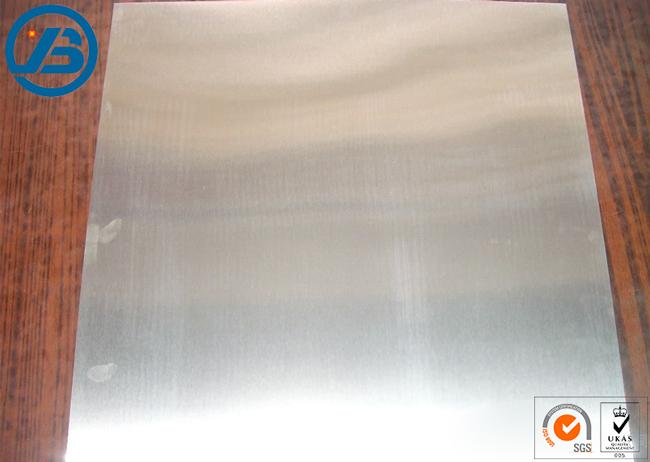

Magnesium Alloy sheet show:
Advantage of Hilbo company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Workshop:
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Product technology advantages
Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises
Testing Equipment
Our services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
