SUS304 Stainless Steel Metal Conveyor Belts High Load Capacity Acid Proof
Stainless Steel Flat Wire Belt Based Customer Specific Requirement
Flat wire belt is custom design according to different machinery application such as cleaning, baking and freezing etc. Wire belt materials are normally 304 / 316 grade stainless steel, it's fully flexible to deal with any kind machinery conveyor under different working environments.
Each flat wire belt can be custom design according to specific application, just tell us requirement and we will provide you a perfect belt for you!
Advantages of flat flex wire belt include:
- Flat carrying surface
- Easy to clean due to open construction
- Positive drive
- High load capacity
- Modular design
- Almost unlimited application possibilities
Flat flex wire belt Application
- Heating, baking machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
Wire belt material properties
Grade | Composition(%) | Temperature resisting | Specifications | |||||
C | Si | Mn | Ni | Cr | Mo | |||
1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | Normal conveyor use |
304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |

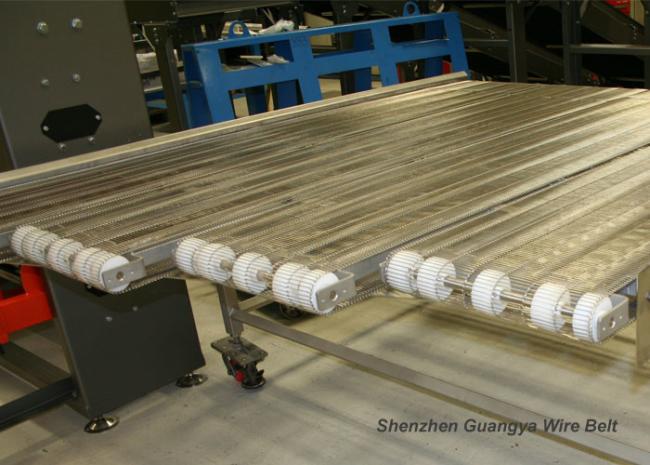

Flat flex wire belt collection
Wire Conveyor Belt FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003 and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
