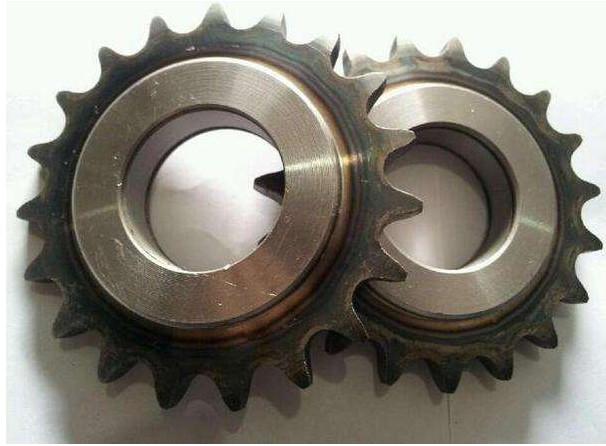

Machined Double Pitch Sprocket For Industries Bad Condition Resistance
MMS Chain Sprocket Wheel With Good Quality,Material Of Chain Sprocket
We manufacture all standard chain sprockets and have strong processing capacity to ensure good quality and competitive price.
The Procket Wheel Specification
Material:Stainless Steel 304,316.S45C,Brass,Iron
Module No:0.1,02,0.5,1.0.,1.2.1.5,3.0,5.0
Gear type:spur gear,bevel gear,screw gear,pinion gear,sproket gear
Pressure Angle:20 degress,36degress,make as customer request
Surface treatment:Precise CNC,Machining,Mirror finish,heat treatment
Program design:CAD,PROE,3D,PDF,
International standard:ISO9000,SGS,GB,JIN BS,CE
Model No:all kinds of sprocket
Service:OEM can be acceptable
Place of Origin:Jiangsu china,can supply C/O
Color: True colours
Inspection: 100%
Usage: industry,machinery,Auto car
Processing style: hardware and plastic mould injection are all can be acceptable
Our sprocket advantages
1. Material: steel or stainless steel, C45, A3, Q235,Q345, S235JR,C22, C40,42CRMO4,PA6, POM
2. Drawing as standard or approved by client before production
3. Standard: ANSI ,DIN ,JIS ,BS, ( SATI, CHIARAVALLI, BEA,MARTIN, BROWNING,KANA)
4. Heat treatment: Harden teeth, tempering, queching
5. Surface treatment: zinc plated, blacken, phopharization, carborized
6. Process: Forging( casting)---lathe- teeth shaping---finishing---oil washing---Packing ,made by CNC machine
7. Inspection: All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product enter into the market.
8. Durable, bad condition Resistance
Stainless steel properties
Grade | Composition(%) | Temperature resisting | Specifications | |||||
C | Si | Mn | Ni | Cr | Mo | |||
1Cr13 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-14 | - | 650℃ | Normal conveyor use |
1Cr17 | ≤0.15 | ≤0.6 | ≤0.6 | - | 12-18 | - | 650℃ | Normal conveyor use |
304M | ≤0.06 | ≤1.0 | ≤0.6 | 8.9-10 | 18-20 | - | 920℃ | Normal conveyor use |
304L | ≤0.03 | ≤1.0 | ≤0.6 | 9-13 | 18-20 | - | 920℃ | intercrystalline corrosion |
316 | ≤0.08 | ≤1.0 | ≤0.6 | 10-14 | 16-18 | 2-3 | 920℃ | Anti corrosion |
316L | ≤0.03 | ≤1.0 | ≤0.6 | 12-15 | 16-18 | 2-3 | 920℃ | intercrystalline corrosion |
309S | ≤0.08 | ≤1.0 | ≤0.6 | 12-15 | 22-14 | - | 1000℃ | Continuous high temperature |
| 310s | ≤0.08 | ≤1.5 | ≤0.6 | 19-22 | 24-26 | - | 1100℃ | High temperature & heavy hit resisting |
314 | ≤0.25 | 1.5-3.0 | ≤0.6 | 19-22 | 23-26 | - | 1200℃ | Antioxidant plus all 310S |
Cr20Ni80 | ≤0.15 | 0.4-1.3 | ≤0.6 | 72-78 | 20-23 | - | 1200℃ | Antioxidant & high temperature resisting |
Product FAQ
Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each sprocket can be custom made based customer side exact parameters.
Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003 and only dedicated to stainless steel wire belt production.
Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
