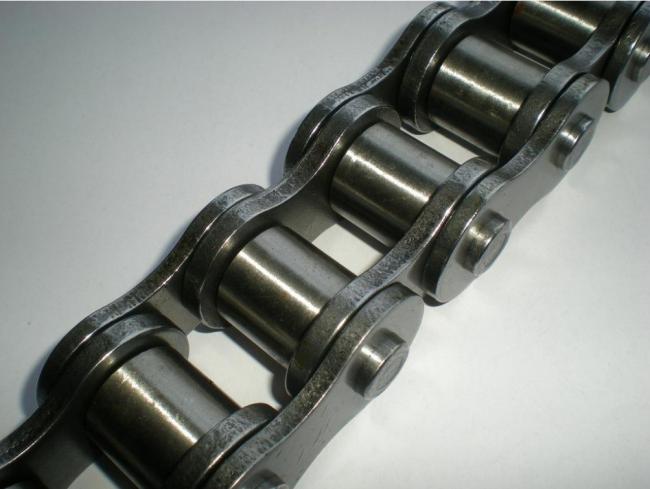

Various Custom Stainless Steel Roller Conveyor Chain Industrial Use Heavy Hit Resisting
Shenzhen Chain Manufacturer 304 Stainless Steel / Various Custom Industrial Roller Chain
Material :
C45 steel,304 stainless steel, 316 stainless steel and 201 stainless steel.
We specialized in producing all kinds of standard chains and special chains, such as A or B series chains, roller chains, driving chains, conveyor chains, hoisting chains, agricultural chains, sprockets, gears, wheels and so on;
Roller Chian Type Model
Simplex Roller Chains&Bushing Chains: 04C-1,06C-1,085-1,08A-1,10A-1,12A-1,16A-1,20A-1,24A-1,28A-1,32A-1,36A-1,40A-1,48A-1
Duplex Roller Chains&Bushing Chains:04C-2,06C-2,085-2,08A-2,10A-2,12A-2,16A-2,20A-2,24A-2,28A-2,32A-2,36A-2,40A-2,48A-2
Triplex Roller Chains&Bushing Chains:04C-3,06C-2,085-3,08A-3,10A-3,12A-3,16A-3,20A-3,24A-3,28A-3,32A-3,36A-3,40A-3,48A-3
Stainless steel properties
|
Grade
|
Composition(%)
|
Temperature
resisting
|
Specifications
|
|||||
|
C
|
Si
|
Mn
|
Ni
|
Cr
|
Mo
|
|||
|
1Cr13
|
≤0.15
|
≤0.6
|
≤0.6
|
-
|
12-14
|
-
|
650℃
|
Normal conveyor use
|
|
1Cr17
|
≤0.15
|
≤0.6
|
≤0.6
|
-
|
12-18
|
-
|
650℃
|
Normal conveyor use
|
|
304M
|
≤0.06
|
≤1.0
|
≤0.6
|
8.9-10
|
18-20
|
-
|
920℃
|
Normal conveyor use
|
|
304L
|
≤0.03
|
≤1.0
|
≤0.6
|
9-13
|
18-20
|
-
|
920℃
|
intercrystalline corrosion
|
|
316
|
≤0.08
|
≤1.0
|
≤0.6
|
10-14
|
16-18
|
2-3
|
920℃
|
Anti corrosion |
|
316L
|
≤0.03
|
≤1.0
|
≤0.6
|
12-15
|
16-18
|
2-3
|
920℃
|
intercrystalline corrosion |
|
309S
|
≤0.08
|
≤1.0
|
≤0.6
|
12-15
|
22-14
|
-
|
1000℃
|
Continuous high temperature |
| 310s |
≤0.08
|
≤1.5
|
≤0.6
|
19-22
|
24-26
|
-
|
1100℃
|
High temperature & heavy hit resisting
|
|
314
|
≤0.25
|
1.5-3.0
|
≤0.6
|
19-22
|
23-26
|
-
|
1200℃
|
Antioxidant plus all 310S
|
|
Cr20Ni80
|
≤0.15
|
0.4-1.3
|
≤0.6
|
72-78
|
20-23
|
-
|
1200℃
|
Antioxidant & high temperature resisting |
| DIN/ISO | Pitch | Roller | Width | Pin | Pin | Lnner | Plate | Ultimate | Average | weight | |
| KIN/ISO | between | diameter | length | plate | thick | tensile | tensile | per | |||
| Chain | inner plates | depth | -ness | strength | strength | meter | |||||
| No. | P | d1 | b1 | d2 | L | Lc | h2 | T | Q | Q0 | q |
| max | min | max | max | max | max | max | min | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |
| 04B-1 | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 0.6 | 3.2/682 | 3.2 | 0.11 |
| 05B-1 | 8 | 5 | 3 | 2.31 | 8.2 | 8.9 | 7.1 | 0.8 | 5.0/1136 | 5.9 | 0.2 |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.2 | 1.3 | 9.0/2045 | 10.4 | 0.41 |
| 08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 18.0/4091 | 19.4 | 0.69 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 22.4/5091 | 27.5 | 0.93 |
| 12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 29.0/6591 | 32.2 | 1.15 |
| 16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21 | 4.15/3.1 | 60.0/13636 | 72.8 | 2.71 |
| 20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 4.5/3.5 | 95.0/21591 | 106.7 | 3.7 |
| 24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 160.0/36364 | 178 | 7.1 |
| 28B-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 200.0/45455 | 222 | 8.5 |
| 32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 250.0/56818 | 277.5 | 10.25 |
| 40B-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 8.5/8.0 | 355.0/80682 | 394 | 16.35 |
| 48B-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 560.0/127272 | 621.6 | 25 | |
